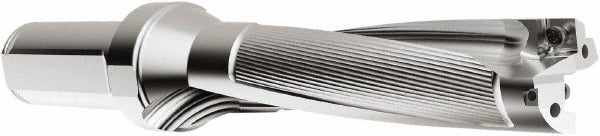

Seco 03080295 Indexable Insert Drill 7/8 in 4xd Perfomax

Product Description

The SECO 03080295 is an indexable insert drill from the SECO PerfoMAX series, designed for high-productivity hole-making in metal cutting operations. The drill body accepts two indexable inserts and delivers a maximum drill depth of 3.5 inches at a 4xD depth-to-diameter ratio. The cutting diameter is 7/8 inch (0.8750 inch decimal, 23.23 mm), with a 1-inch straight cylindrical shank. Coolant-through capability supports chip evacuation and tool life in demanding drilling cycles. The tool is constructed from steel and is suited for general-purpose drilling applications on CNC machining centers and drill presses.

This drill is intended for use in metal removal applications requiring consistent hole geometry and repeatable depth control. The straight cylindrical shank fits standard toolholders with a 1-inch bore. The PerfoMAX series is designed for general-purpose drilling in production environments, including job shops and manufacturing facilities running ferrous and non-ferrous workpieces. Compatible insert styles are SCGX and SPGX, specifically insert size codes 060204 and 0703. The modular connection size is R7, and the neck diameter measures 1.378 inches.

Key Features

• 7/8 inch cutting diameter (0.8750 inch decimal) with 4xD maximum drill depth of 3.5 inches
• Accepts two indexable inserts — compatible with SCGX and SPGX styles, size codes 060204 and 0703
• Coolant-through design for improved chip flushing and tool life in deep-hole operations
• Straight cylindrical shank, 1-inch diameter, for use in standard CNC or manual toolholding systems
• Steel body construction with R7 modular connection
• Right-hand cutting direction, general-purpose tool performance rating

Compatibility

Compatible with drill style SD524. Designed for use with SCGX and SPGX indexable insert styles in size codes 060204 and 0703. Insert compatibility confirmed for SPGX0703 series inserts.

Installation Notes

Installation is performed by qualified machinists or CNC setup technicians. Ensure the machine spindle is fully stopped and the machine is in a safe, locked-out state before mounting or changing inserts. Seat the shank fully in the toolholder and confirm proper insert seating and torque per insert manufacturer guidelines before initiating a cutting cycle. Verify coolant-through passages are clear and coolant pressure is appropriate for the spindle before use.
