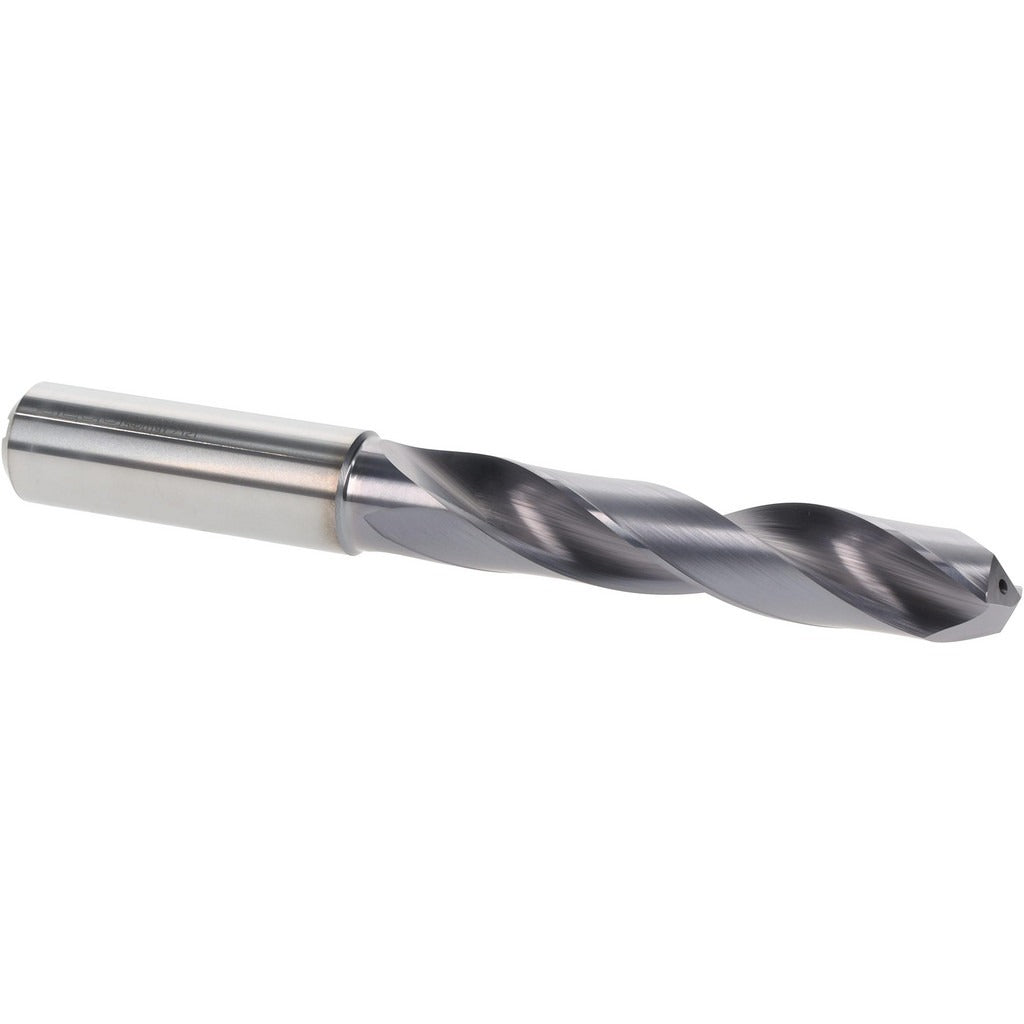

Seco 03046267 Solid Carbide Jobber Drill 14.50 Mm Tialn

Product Description

The SECO 03046267 is a solid carbide jobber-length drill bit from the SD205A series, designed for high-performance drilling in demanding metalworking applications. It features a 14.50 mm cutting diameter, a 140-degree point angle for reduced thrust and accurate self-centering, and a TiAlN coating that extends tool life under elevated cutting temperatures. With an overall length of 133.00 mm and a two-flute spiral design, this drill is built for right-hand cutting in production and job-shop environments. It is installed by machinists and tooling technicians working on CNC machining centers, drill presses, and manual mills.

This drill is engineered for cutting steel, stainless steel, cast iron, and other hard materials, corresponding to ISO material groups P, M, K, and H. The 5xD flute-to-diameter ratio provides a maximum drilling depth of 63.00 mm, making it well-suited for through-hole and blind-hole operations in structural and alloy steel components, stainless fabrications, and cast iron housings. The straight-cylindrical shank with a 16.00 mm shank diameter seats securely in standard drill chucks and collet holders.

Key Features

• 14.50 mm cutting diameter with m7 tolerance for consistent, repeatable hole sizing
• 140-degree standard point angle reduces entry thrust and improves centering on flat and curved surfaces
• TiAlN coating provides thermal resistance and wear protection in steel and hard-material drilling
• Solid carbide construction delivers rigidity and edge retention superior to high-speed steel alternatives
• Two-flute spiral design promotes efficient chip evacuation during drilling cycles
• Straight-cylindrical shank compatible with standard chucks and collet systems; no flats

Compatibility

The SECO 03046267 is part of the SD205A series and is rated for primary workpiece materials including steel, stainless steel, cast iron, and hard materials (ISO codes P, M, K, H). It fits any machine spindle or toolholder accepting a 16.00 mm straight-cylindrical shank.

Installation Notes

This drill is intended for installation by qualified machinists or tooling technicians in machine tool environments. Ensure the spindle and toolholder are clean and free of runout before seating the shank, as excessive runout accelerates carbide edge wear. Secure the shank to the recommended clamping torque specified by the toolholder manufacturer. Coolant-through is not supported on this drill; verify adequate external coolant or air blast is applied to manage chip evacuation and heat at the cutting zone.
