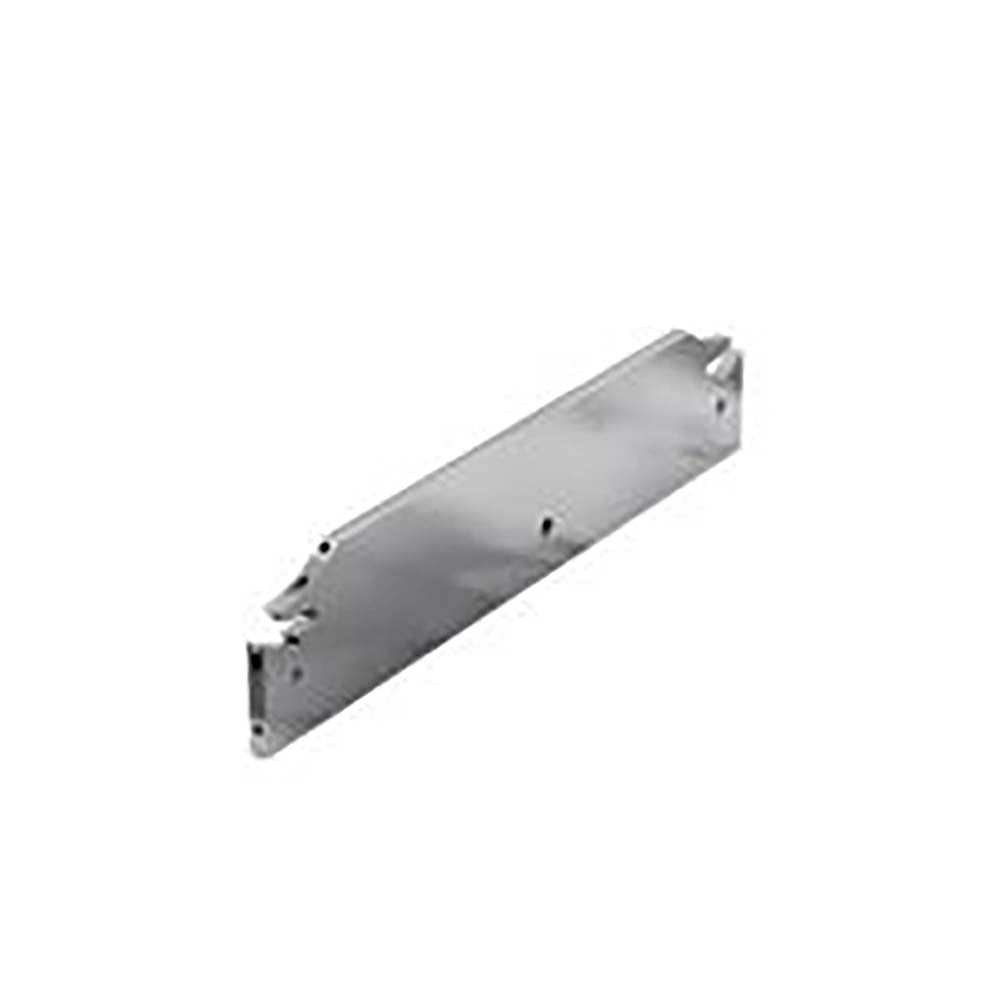

Seco 03002665 Indexable Cutoff Blade Double End Right Hand

Product Description

The SECO 03002665 is a double-end, right-hand indexable cutoff blade designed for CNC and manual turning applications. Built to the 150.10A blade style, it measures 25 millimeters high, 2.4 millimeters wide, and 150 millimeters in overall length. The blade accepts 3 mm inserts and uses a spring clamp holding method for secure, repeatable insert positioning. It is compatible with 150.10-25 tool block style holders and carries ISO standard compliance. Machinists and CNC turning specialists install this blade for parting and grooving operations where precision depth control and rigidity are critical requirements.

This cutoff blade is intended for turning center and lathe applications in production and job-shop environments. The double-end design extends usable blade life by allowing the operator to flip to the second cutting end before replacement. It supports a maximum workpiece diameter of 122 millimeters and a maximum depth of cut of 61 millimeters, making it suited to medium-diameter bar stock parting in both ferrous and non-ferrous turning operations. The Jetstream series designation indicates compatibility with through-coolant or directed coolant delivery configurations typical in high-efficiency turning setups.

Key Features

• Double-end design provides two usable cutting ends per blade, reducing tooling cost per cut
• Spring clamp insert holding method delivers fast insert indexing without additional tooling
• 3 mm insert width accommodates standard 150.10-3 series inserts
• Maximum depth of cut of 61 millimeters supports medium-diameter workpiece parting
• ISO-compliant construction for consistent fitment in standard tooling systems
• Jetstream series compatibility supports directed coolant delivery at the cutting zone

Compatibility

Designed for use with 150.10-25 tool block style holders and 150.10-3 series inserts within the SECO Jetstream turning system. Specific equipment compatibility should be verified against the machine tool and toolholder configuration before installation.

Installation Notes

Installation should be performed by a qualified machinist or CNC tooling technician with the machine in a fully powered-down and locked-out state per applicable OSHA lockout/tagout procedures. Confirm that the tool block style and insert width match before seating the blade. Do not exceed the maximum workpiece diameter or depth-of-cut specifications listed for this blade. Inspect the spring clamp and seating surfaces for debris or damage before each insert change.
