Seco 02960879 Turning Insert WCMT32.52-F1 TP2501 Carbide

Product Description

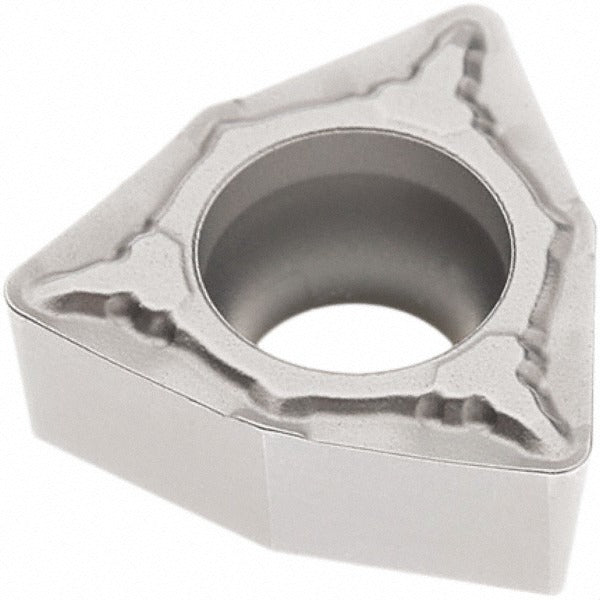

The SECO 02960879 is a WCMT32.52-F1 series solid carbide turning insert designed for finishing operations on steel, stainless steel, and cast iron. Manufactured to the TP2501 grade with a Duratomic CVD coating process applying TiCN, Al2O3, and Cr layers, this insert delivers high wear resistance across a broad range of cutting conditions. The 80-degree trigon (W) shape provides three usable cutting edges, and the F1 chip breaker geometry is optimized for light, precise finishing cuts. Licensed machinists and CNC turning specialists select this insert for applications where surface finish and dimensional accuracy are the priority.

This insert is suited for use in CNC turning centers and manual lathes performing boring, facing, and turning operations. It is primarily rated for steel (P-class) workpieces but carries secondary ratings for stainless steel (M-class) and cast iron (K-class) materials, covering material grades P10, P20, P30, and P35. The positive rake geometry and sharp cutting edge style reduce cutting forces, making it a practical choice for finishing passes where minimal deflection matters. It mounts via screw-lock toolholders compatible with the WCMT insert style and ANSI size code 32.52 / ISO code WCMT06T308.

Key Features

• Duratomic CVD multilayer coating (TiCN, Al2O3, Cr) for extended tool life in steel and stainless cutting
• F1 chip breaker geometry optimized for finishing operations with sharp, positive-rake cutting edge
• Three usable cutting edges on the 80-degree trigon (W) insert shape
• Positive side clearance and neutral hand for flexible toolholder pairing
• Rated for boring, facing, and turning in a single insert style
• Conforms to ANSI and ISO standards (ANSI WCMT32.52, ISO WCMT06T308)

Compatibility

Designed for use in screw-lock toolholders accepting WCMT-style inserts with ANSI size code 32.52 and ISO size code WCMT06T308. Compatible with CNC and manual turning setups performing finishing operations on steel, stainless steel, and cast iron workpieces at material grades P10 through P35.

Installation Notes

Installation is performed by qualified machinists following standard insert-change procedures for screw-lock toolholders. Ensure the machine spindle is fully stopped and the toolholder is secured in the turret before seating or removing the insert. Confirm the insert pocket and seating surface are clean and free of chips before clamping. Always verify correct insert orientation and torque the clamping screw to the toolholder manufacturer's specification.
