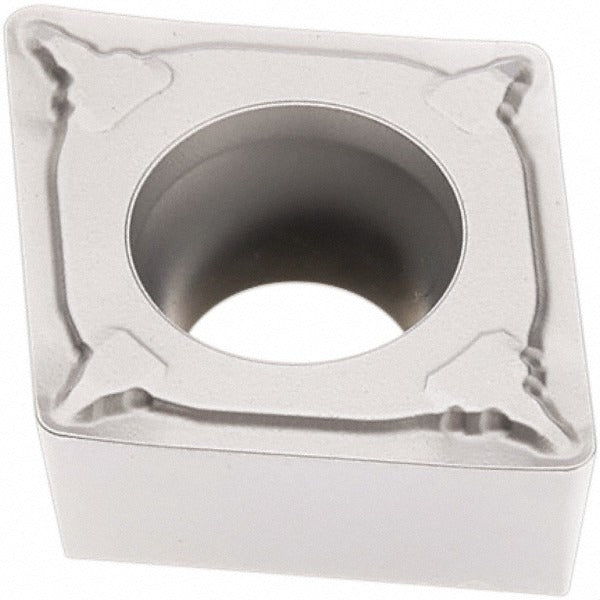

Seco 02960854 Turning Insert CCMT432-F1 TP2501 Carbide

Product Description

The SECO 02960854 is a solid carbide turning insert in the CCMT-F1 series, designed for precision metal cutting in CNC lathe and turning center applications. It features an 80-degree diamond insert shape, a neutral hand orientation, and a 0.5-inch inscribed circle with a 1/32-inch (0.0315-inch) corner radius. The insert carries the TP2501 manufacturer grade and is finished with a CVD-applied Duratomic multilayer coating of TiCN, Al2O3, and Cr, which supports extended tool life across a range of workpiece materials. The F1 chip breaker geometry delivers a sharp cutting edge suited to finishing and light-to-medium material removal passes. Machinists and CNC operators working in job-shop or production environments will find this insert appropriate for steel-focused turning work.

This insert is suited for boring, facing, and turning operations primarily on steel workpieces, with secondary application capability on stainless steel and cast iron. It fits standard CCMT-style screw-clamp toolholders that accept a 0.2205-inch (5.60 mm) hole diameter insert. The insert is appropriate for use in finishing to medium-roughing passes with a maximum depth of cut of 0.4764 inches. Typical applications include OD turning, facing, and internal boring on CNC lathes in both job-shop and production environments where P10 through P35 material grades are encountered.

Key Features

• Duratomic CVD multilayer coating: TiCN, Al2O3, and Cr for extended wear resistance
• 80-degree diamond insert shape with positive rake geometry for reduced cutting forces
• F1 chip breaker delivers sharp cutting edge suitable for finishing passes
• Neutral hand orientation accommodates both left- and right-hand toolholder setups
• Multi-application geometry supports boring, facing, and turning in a single insert style
• Complies with ANSI and ISO standards; ISO code CCMT120408-F1

Compatibility

Designed for use in CCMT-style screw-clamp toolholders accepting inserts with a 0.2205-inch hole diameter and a 0.5-inch inscribed circle. Compatible with P10, P20, P30, and P35 material grade classifications for steel as the primary workpiece material, with secondary compatibility for stainless steel and cast iron.

Installation Notes

Installation is performed by a machinist or CNC tooling technician using the screw-clamp insert holding method standard to CCMT toolholders. Ensure the machine spindle is fully stopped and the turret is locked before indexing or replacing inserts. Inspect the toolholder pocket and seating surface for chips or debris before seating the insert to prevent improper clamping and premature edge failure. Follow the toolholder manufacturer torque specification for the clamping screw, as over-tightening can crack carbide inserts.
