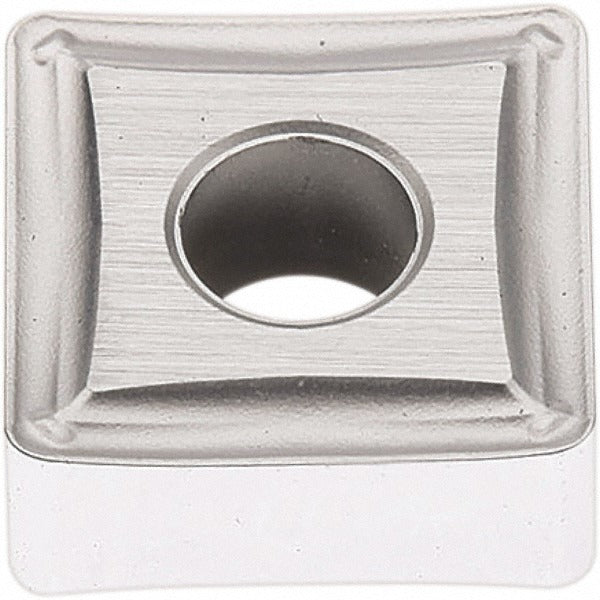

Seco 02960750 Turning Insert SNMG322-MF2 TP2501 Carbide

Product Description

The SECO 02960750 is a solid carbide turning insert in the SNMG-MF2 series, designed for precision metal cutting in general turning, facing, and boring operations. It carries the Duratomic CVD coating stack of TiCN, Al2O3, and Cr, which extends wear resistance across a broad range of cutting conditions. The insert features a 3/8-inch inscribed circle, a 1/32-inch corner radius, a 90-degree square shape, and a neutral hand orientation. With 8 cutting edges per insert and a chamfered and honed cutting edge style, it delivers consistent performance and long tool life in production environments. Grade TP2501 is rated for material grades P10 through P35.

This insert is suited for machining steel as its primary workpiece material, with secondary application to stainless steel and cast iron. The MF2 chip breaker geometry is optimized for medium-finish cutting passes in these materials. Typical use cases include CNC lathe turning, facing operations, and boring on production runs in job shops and manufacturing facilities. The negative rake and SNMG-style clamping make it compatible with standard SNMG toolholders using clamp, pin, or lever-lock holding methods. Maximum depth of cut is 0.3425 inches.

Key Features

• Duratomic CVD coating (TiCN, Al2O3, Cr) for extended wear resistance in steel and stainless applications
• 8 cutting edges per insert for reduced cost per edge in production runs
• MF2 chip breaker optimized for medium-finish passes on steel and stainless steel
• Chamfered and honed cutting edge style improves edge stability and surface finish
• Compatible with clamp, pin, and lever-lock SNMG toolholder systems
• Multi-use application: turning, facing, and boring from a single insert geometry

Compatibility

Designed as an OEM-style replacement insert for SNMG-style toolholders using clamp, pin, or lever-lock holding methods. Industry standard number SNMG322-MF2; ISO code SNMG090308-MF2. Conforms to ANSI and ISO standards for SNMG insert geometry.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician. Ensure the machine spindle is fully stopped and locked out before changing inserts. Seat the insert firmly in the toolholder pocket and verify the clamping mechanism is properly engaged before resuming cutting operations. Do not exceed the toolholder manufacturer's recommended feed, speed, or depth-of-cut parameters for this insert size.
