Seco 02960545 CNMG644-M5 Turning Insert 3/4 in Ic

Product Description

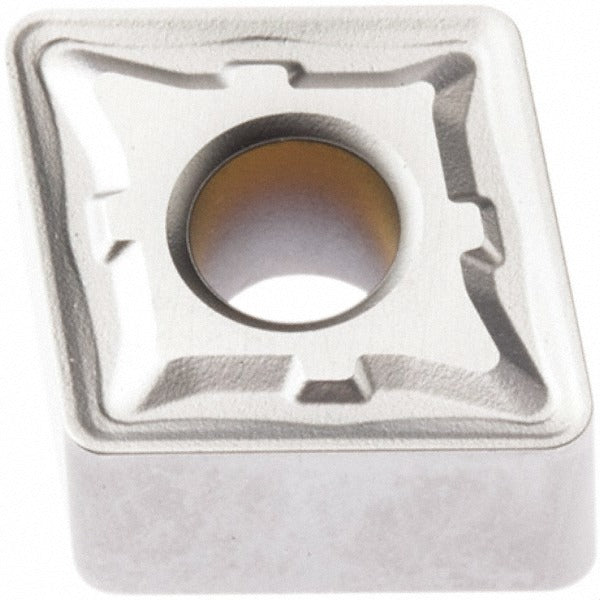

The SECO 02960545 is a CNMG644-M5 indexable turning insert manufactured from solid carbide with a CVD-applied Duratomic multilayer coating consisting of TiCN, Al2O3, and Cr. The insert carries manufacturer grade TP2501, which is engineered for steel and stainless steel cutting applications. It features an 80-degree diamond shape (CNMG insert style), a 3/4-inch inscribed circle, a 1/16-inch corner radius, and 4 cutting edges. The M5 chip breaker geometry uses a chamfered and honed cutting edge style with a negative rake and 0-degree relief angle, producing a stable, predictable cut in general turning operations.

This insert is suited for medium to heavy-duty turning, facing, and boring on CNC lathes and machining centers in production and job-shop environments. The TP2501 grade targets primary workpiece materials in ISO P (steel) classifications, with secondary suitability for ISO M (stainless steel) and ISO K (cast iron). It is compatible with CNMG-style toolholders that accept clamp, pin, or lever-lock holding methods. The neutral hand orientation allows installation in both right-hand and left-hand toolholder configurations.

Key Features

• CVD Duratomic multilayer coating (TiCN, Al2O3, Cr) for extended tool life in steel cutting
• 4 indexable cutting edges per insert for cost-effective usage
• M5 chip breaker with chamfered and honed edge for stable chip control
• Neutral hand orientation fits both right-hand and left-hand CNMG toolholders
• Compatible with clamp, pin, and lever-lock insert holding methods
• Meets ANSI and ISO standards; ISO code CNMG190616-M5

Compatibility

Designed for use in CNMG-style indexable toolholders accepting an 80-degree diamond insert with a 3/4-inch inscribed circle. Compatible with clamp, pin, and lever-lock holding systems. Suitable for boring, facing, and turning operations. Industry standard number CNMG644-M5; ISO code CNMG190616-M5.

Installation Notes
