Seco 02960487 Turning Insert CNMG433-M5 TP1501 Carbide

Product Description

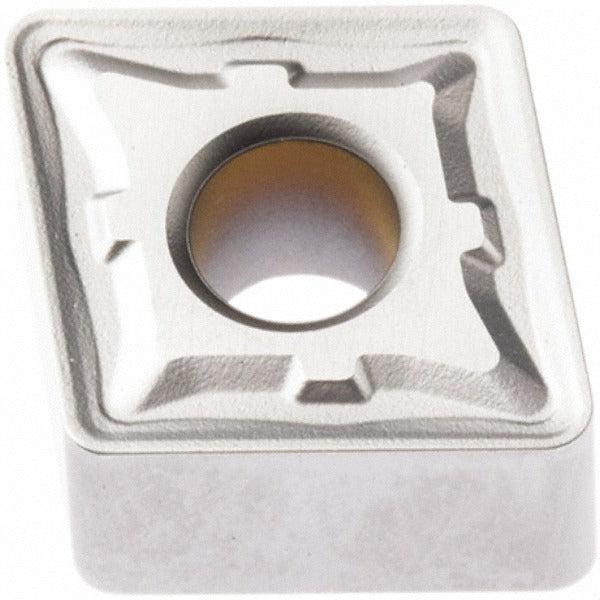

The SECO 02960487 is a solid carbide indexable turning insert in the CNMG-M5 series, designed for medium to finish turning operations on steel and cast iron workpieces. It carries an 80-degree diamond (rhombic) shape with a neutral hand orientation, a 0-degree relief angle (clearance code N), and tolerance code M for consistent seating in standard CNMG toolholders. The insert is CVD-coated with a Duratomic multilayer system — TiCN, Al2O3, and Cr — delivering wear resistance and thermal stability at productive cutting speeds. Four usable cutting edges per insert reduce tooling cost per part. Primary applications fall within ISO material groups P10 and P20.

This insert is suited for external and internal turning, facing, and boring on steel in the P material class, with secondary capability on cast iron (K) and hard materials (H). The M5 chip breaker geometry features a chamfered and honed cutting edge that manages chip control across a broad range of depths of cut, up to a maximum of 0.4606 inches. It fits standard CNMG-style toolholders using clamp, pin, or lever-lock holding methods, making it compatible with common turning center and lathe setups in both production and job-shop environments.

Key Features

• Duratomic CVD multilayer coating: TiCN, Al2O3, and Cr for extended tool life on steel
• 80-degree diamond insert shape with 4 cutting edges per insert
• M5 chip breaker with chamfered and honed edge for controlled chip formation
• Compatible with clamp, pin, and lever-lock CNMG toolholders
• Maximum depth of cut of 0.4606 inches supports medium roughing and semi-finish passes
• Conforms to both ANSI and ISO standards; ISO code CNMG120412-M5

Compatibility

Designed as an OEM-style replacement insert for standard CNMG toolholders accepting clamp, pin, or lever-lock mounting. Industry standard number CNMG433-M5 (ISO: CNMG120412-M5). Minimum order quantity is 10 inserts; package quantity is 1.

Installation Notes
