Seco 02960484 Turning Insert CNMG432-M5 TP1501 Carbide

Product Description

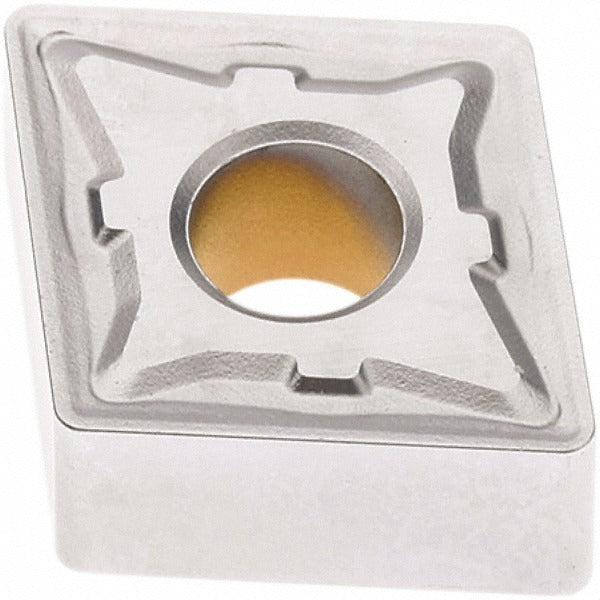

The SECO 02960484 is a CNMG432-M5 indexable turning insert manufactured from solid carbide with a CVD-applied Duratomic multilayer coating of TiCN, Al2O3, and Cr. It carries the TP1501 manufacturer grade and is designed for negative-rake, neutral-hand turning operations on CNC lathes and turning centers. The insert features an 80-degree diamond shape, a 1/2-inch inscribed circle, and a 0.0315-inch corner radius. With four cutting edges and a chamfered-and-honed edge preparation, it delivers consistent performance across general steel turning applications. Licensed machinists and CNC operators install this insert in CNMG-compatible toolholders for production and maintenance turning work.

This insert is suited for primary use on steel workpieces, including P10 and P20 material grades, and secondary use on cast iron and hard materials. Typical applications include external and internal turning, facing, and boring operations on mid- to high-production machining centers. The M5 chip breaker geometry is engineered for medium-depth interrupted and continuous cuts in steel and cast iron, making it a practical choice for both roughing and semi-finishing passes. The ANSI and ISO standards compliance (ISO code CNMG120408-M5) ensures broad toolholder compatibility in both imperial and metric setups.

Key Features

• CVD Duratomic coating (TiCN / Al2O3 / Cr) for extended wear resistance on steel and cast iron
• TP1501 grade optimized for P10 and P20 steel material grades
• 80-degree diamond insert shape (shape code C) with negative rake and 0-degree relief angle
• M5 chip breaker geometry supports turning, facing, and boring at medium depths of cut up to 0.4764 inches
• Chamfered and honed cutting edge for improved edge stability and reduced chipping
• Four usable cutting edges per insert; compatible with clamp, pin, and lever-lock holding methods

Compatibility

Designed for use in CNMG-style toolholders conforming to ANSI and ISO standards. Compatible with clamp, pin, and lever-lock insert holding methods. Suitable for multi-use application across boring, facing, and turning setups on steel, cast iron, and hard material workpieces.

Installation Notes

Installation is performed by qualified machinists or CNC tooling technicians. Ensure the machine spindle is fully stopped and the turret is indexed to a safe position before changing inserts. Seat the insert fully against the toolholder pocket and verify the clamping mechanism is fully engaged before resuming cuts. Do not exceed the maximum depth of cut specified for the toolholder and insert combination.
