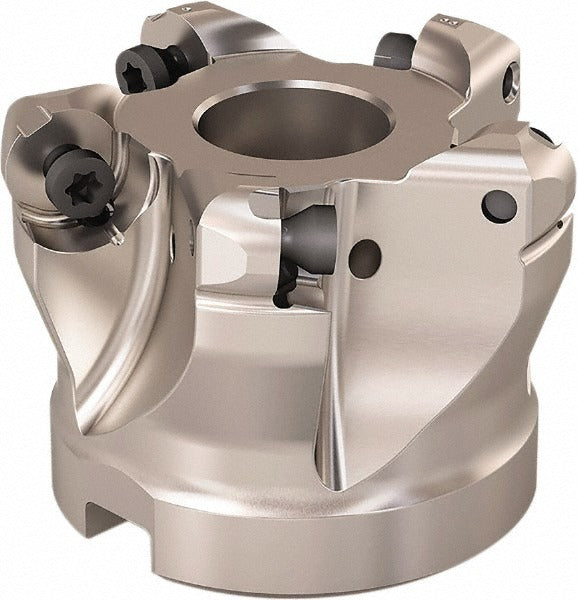

Seco 02949643 Indexable Copy Face Mill 2 in 3/4 in Arbor

Product Description

The SECO 02949643 is an indexable copy face mill designed for precision milling operations in metalworking and machining environments. It accepts five RP 1204 inserts secured by screw clamping, providing a stable cutting platform across the full 2-inch maximum cutting diameter. The cutter operates in the right-hand cutting direction and delivers a maximum depth of cut of 0.236 inches. Through-coolant capability is built in, supporting extended tool life and chip evacuation during demanding cuts. This tool is intended for use by machinists and tooling specialists working on CNC machining centers and milling machines.

The 02949643 is suited for helical interpolation and ramping applications, making it a practical choice for producing pockets, contours, and slotted features in ferrous and non-ferrous materials. The 3/4-inch arbor hole with a 0.320-inch keyway width allows secure mounting to standard arbors. The maximum ramping angle of 6.50 degrees and maximum spindle speed of 12,500 RPM make it compatible with a range of CNC milling setups where controlled axial engagement is required. The R220.29 series cutter style is the defining platform for this tool family.

Key Features

• Accepts five RP 1204 inserts with screw-in holding method for repeatable indexing
• Through-coolant design supports chip evacuation and thermal management at the cutting zone
• Maximum ramping angle of 6.50 degrees enables helical interpolation and ramp-entry strategies
• Right-hand cutting direction with maximum spindle speed of 12,500 RPM
• 3/4-inch arbor hole with 0.320-inch keyway width for positive drive engagement
• Overall height of 1.5 inches in a compact 2-inch diameter body weighing 0.56 pounds

Compatibility

Designed for use with RP 1204 series indexable inserts on standard 3/4-inch arbor milling setups. Part of the SECO R220.29 cutter series.

Installation Notes

Installation should be performed by a qualified machinist following the machine tool manufacturer guidelines for arbor mounting and torque procedures. Disengage and lock out the spindle drive before mounting or indexing inserts. Verify arbor fit and keyway alignment before securing the cutter. Always confirm insert seating and screw torque to the insert manufacturer specification before initiating a cut.
