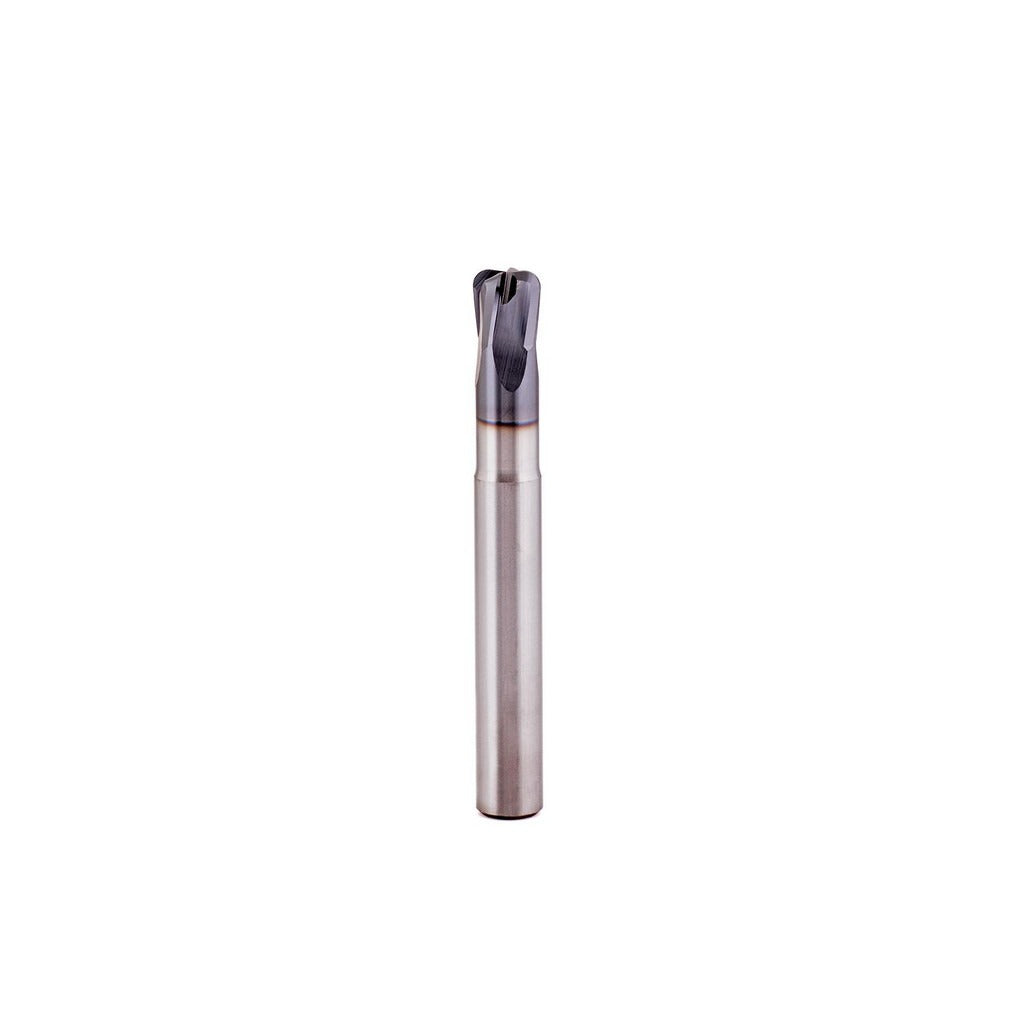

Seco 02942334 Corner Radius End Mill Head 1/2 in 4 Flute

Product Description

The SECO 02942334 is a solid carbide corner radius end mill head designed for high-performance milling in demanding machining environments. Built to the MZN410R series specification, it features a 1/2 inch diameter cutting face with four spiral flutes and an AlTiN (aluminum titanium nitride) coating that improves heat resistance and tool life in dry or semi-dry cutting conditions. The right-hand cutting direction and 10-degree helix angle are suited to a range of milling operations where corner integrity and surface finish are critical. This is a single-end, stub-length head with a cylindrical shank, installed by machinists and CNC operators in precision metalworking and manufacturing environments.

This end mill head is intended for use in modular tooling systems that accept a 1/2 inch cylindrical shank. The 0.120 inch length of cut and 1.5 inch reach length make it appropriate for profiling, slotting, and light pocket milling where extended reach into confined geometry is required. The micrograin carbide substrate supports precision cutting in hardened steels, stainless, titanium, and similar difficult-to-machine alloys. It is not center-cutting, so it is not suited for direct plunge entry without a pre-drilled pilot hole.

Key Features

• AlTiN coating for elevated heat resistance and extended tool life in dry or near-dry cutting
• Micrograin solid carbide substrate for rigidity and edge retention in hard materials
• Four spiral flutes with right-hand cutting direction for efficient chip evacuation
• 1.5 inch reach length with 0.468 inch neck diameter for access to deep or confined features
• Extended reach design reduces deflection risk in deep-profile applications
• Single-end, stub-length configuration in MZN410R modular series

Compatibility

Designed for use in modular end mill systems accepting a 1/2 inch cylindrical shank, consistent with the SECO MZN410R series tooling platform.

Installation Notes

Installation and tool changes should be performed by a qualified machinist with the machine spindle fully stopped and the machine control in a safe state. Torque the tool head to the modular coupling according to the toolholder manufacturer specifications. Verify runout after assembly before initiating a cutting cycle. Because this head is not center-cutting, always use a pre-drilled hole or ramp entry for plunge moves.
