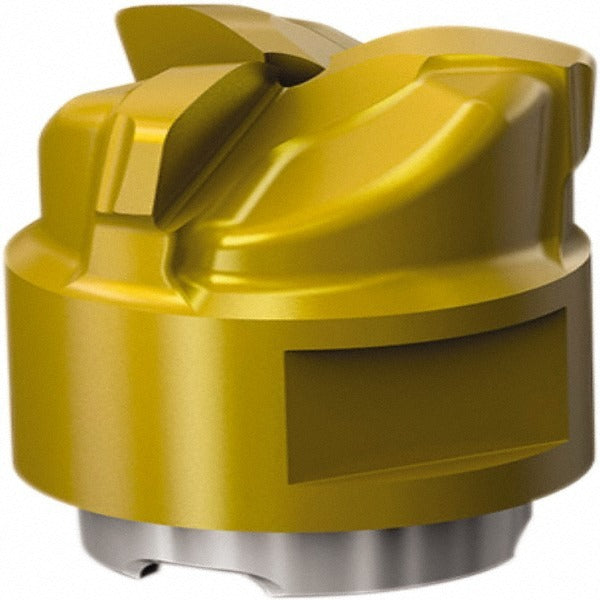

Seco 02825081 High Feed Milling Tip 0.375 in Carbide 3 Flute

Product Description

The SECO 02825081 is a high feed replaceable milling tip designed for the Minimaster Plus modular milling system. Manufactured from solid carbide with a TiAlN PVD coating and MP3000 grade, this right-hand tip delivers aggressive material removal at a 0.375 inch cutting width and a maximum depth of cut of 0.024 inches. The three-flute geometry with MD08 chipbreaker is optimized for high feed rates in steel, stainless steel, and hard materials. Coolant-through capability supports chip evacuation and tool life in demanding cuts. This tip suits CNC machinists and tooling specialists working in production milling environments where consistent performance and quick insert changeover are required.

The 02825081 fits the Minimaster Plus MP10 series interchangeable head system and is rated for use on steel (P20, P30), stainless steel (M10), and hard materials (H10, H20, H30) per ISO workpiece material codes. The 90-degree lead angle and slotting milling tip style make it applicable for shoulder milling and slot milling operations. It is suited to both light-duty production runs and harder material applications where PVD-coated carbide tooling is the standard choice. The ANSI-standard design ensures dimensional consistency for shops running Minimaster Plus toolholders.

Key Features

• Carbide construction with TiAlN PVD coating for heat and wear resistance in steel and hard materials
• MP3000 manufacturer grade rated for P20, P30, M10, H10, H20, and H30 workpiece materials
• 0.375 inch cutting width with 0.024 inch maximum depth of cut and 0.024 inch corner radius
• Three-flute geometry with MD08 chipbreaker for controlled chip formation at high feed rates
• Coolant-through design aids chip evacuation and extends tool life in difficult cuts
• Right-hand cut, 90-degree lead angle, slotting tip style for shoulder and slot milling

Compatibility

Designed for use with the Minimaster Plus MP10 series modular milling system. Compatible with P, M, and H workpiece material groups including steel, stainless steel, and hard materials as specified in supplier data. Fits toolholders accepting the 00.375-.024-HFZ3 insert size designation.

Installation Notes

Installation is performed by a CNC machinist or tooling technician familiar with the Minimaster Plus modular head system. Ensure the spindle is fully stopped and the machine is in a safe, locked-out state before changing milling tips. Use the appropriate torque wrench and Minimaster Plus mounting hardware specified by the toolholder manufacturer. Do not exceed the maximum depth of cut rating of 0.024 inches to avoid tip overload or premature failure.
