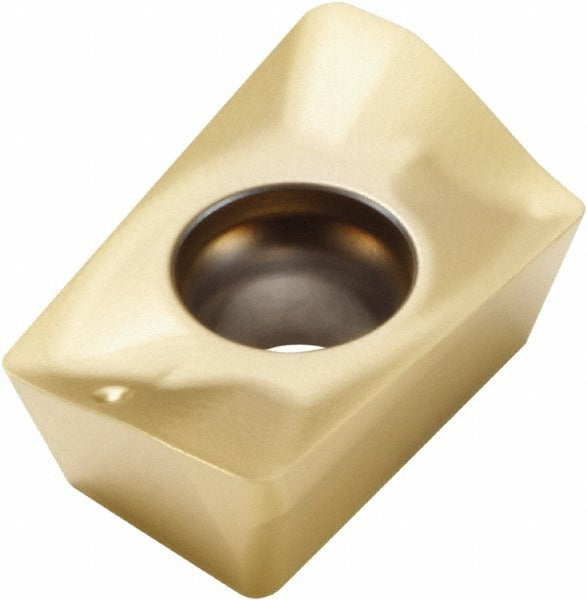

Seco 02823858 Milling Insert XOEX10T316R-M06 F40M Carbide

Product Description

The SECO 02823858 is a solid carbide milling insert carrying ANSI and ISO designation XOEX10T316R-M06 in manufacturer grade F40M. This single-sided, parallelogram-shaped insert is designed for indexable milling operations in compatible cutter bodies. It features a PVD-applied dual-layer TiAlN and TiN coating over a fine-grain carbide substrate, a positive rake geometry at 15.1 degrees, and a honed cutting edge style. With two cutting edges, a 0.0630-inch corner radius, and a maximum depth of cut of 0.3819 inches, it delivers consistent performance in demanding metal removal applications. Installation is by screw-clamping method.

This insert is suited for milling steel, stainless steel, cast iron, non-ferrous metals, superalloys, and titanium in both roughing and semi-finishing scenarios. The M06 chip breaker geometry is optimized for medium machining conditions across these material groups. The right-hand cutting orientation and 90-degree included angle make it appropriate for face milling and shoulder milling setups in production and job-shop environments. Licensed machinists, CNC operators, and tooling technicians working in aerospace, general metalworking, and foundry applications are the primary users of this insert series.

Key Features

• PVD-coated TiAlN and TiN dual-layer finish for extended tool life in steel and cast iron
• Fine-grain solid carbide substrate with F40M grade designation
• Positive rake angle of 15.1 degrees reduces cutting forces and heat generation
• Honed cutting edge style for improved edge stability and chipping resistance
• Two usable cutting edges per insert to maximize cost-per-edge efficiency
• M06 chip breaker geometry supports medium-duty milling across a broad material range

Compatibility

Compatible with cutter series R217.69-10 and R220.69-10 per supplier data. Conforms to ISO standard insert designation XOEX10T316R-M06 within the XOEX-10 series.

Installation Notes

Installation and replacement of indexable milling inserts should be performed by a qualified machinist or tooling technician with the machine fully de-energized and the spindle locked. Use the manufacturer-specified torque wrench and insert screw to seat the insert securely in the pocket; never hand-tighten without a torque tool. Inspect the insert pocket and seating surfaces for chips or wear before seating a new insert. Follow applicable shop safety procedures and machine tool manufacturer guidelines when changing inserts at the spindle.
