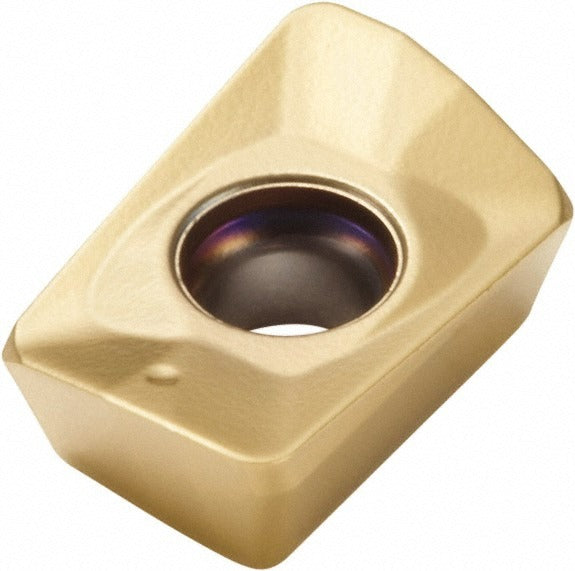

Seco 02823849 Milling Insert XOEX10T308R-M06 F40M Carbide

Product Description

The SECO 02823849 is a solid carbide milling insert carrying ANSI/ISO designation XOEX10T308R-M06 in manufacturer grade F40M. This right-hand, single-sided parallelogram insert features a positive rake geometry with a 15.1-degree rake angle and a 15-degree relief angle. The cutting edge is honed for consistent engagement and the insert is PVD-coated with a dual TiAlN and TiN coating to support thermal stability and wear resistance during high-demand milling operations. With two cutting edges and a maximum depth of cut of 0.3819 inches, it is suited for face and shoulder milling applications on machining centers. Installation is performed by machining professionals using the screw-holding method.

This insert is designed for milling steel, stainless steel, cast iron, non-ferrous metals, superalloys, and titanium, making it a broad-application tooling choice for job shops and production environments. Primary workpiece material codes are P, K, and S, with secondary codes K and N. The M06 chip breaker geometry is optimized for medium cutting conditions across these material families. Typical applications include face milling, shoulder milling, and ramping operations on vertical and horizontal machining centers where consistent chip formation and edge integrity are required.

Key Features

• Solid carbide fine-grain substrate with PVD-applied TiAlN and TiN dual coating for extended tool life
• Positive rake angle of 15.1 degrees reduces cutting forces on workpiece and spindle
• Honed cutting edge style improves edge toughness and reduces micro-chipping
• M06 chip breaker optimized for medium-condition milling across steel, cast iron, and superalloy workpieces
• Right-hand, single-sided parallelogram shape with 90-degree included angle for shoulder milling accuracy
• Screw-holding method provides secure, repeatable seating in compatible cutter bodies

Compatibility

Compatible with cutter series R217.69-10 and R220.69-10 as stated by the manufacturer. This insert belongs to the XOEX-10 series and uses insert size code 10T308.

Installation Notes
