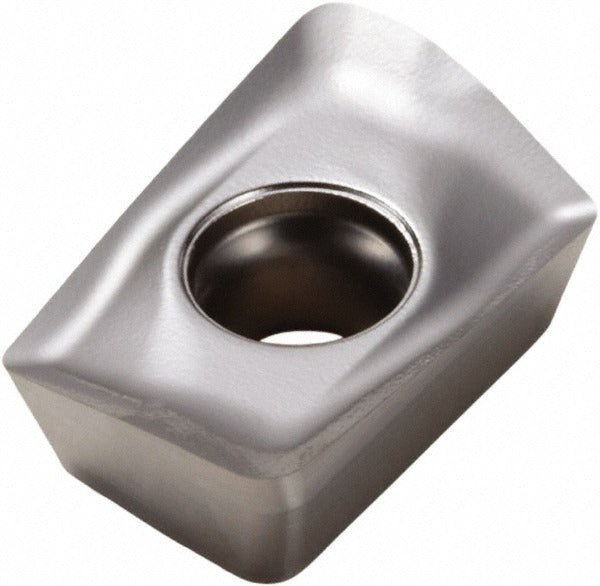

Seco 02823841 Milling Insert XOEX10T304FR-E05 H15 Carbide

Product Description

The SECO 02823841 is a solid carbide milling insert carrying the ANSI and ISO designation XOEX10T304FR-E05, offered in manufacturer grade H15 with a bright, uncoated finish. This single-sided, right-hand parallelogram insert features two cutting edges, a positive rake angle of 21.6 degrees, a sharp cutting edge style, and a 15-degree relief angle. The insert measures 0.3819 inches in cutting edge effective length, 0.2717 inches inscribed circle diameter, and 0.1496 inches thick. It is held in the cutter body by a screw-type clamping method. Licensed HVAC techs, machinists, and toolroom professionals install this insert into compatible milling cutter bodies for high-efficiency material removal in non-ferrous metal applications.

This insert is designed primarily for milling non-ferrous metals, including aluminum alloys and other materials classified under ISO workpiece material code N. The positive rake geometry and sharp, uncoated micrograin carbide edge reduce cutting forces and built-up edge on soft, gummy, or highly abrasive non-ferrous stock. It is suited for both light finishing passes and moderate stock-removal operations in production and job-shop environments. The E05 chip breaker geometry supports chip control across a range of feed rates and depths of cut up to 0.3819 inches. Sold individually per package, with a minimum order quantity of 10 units.

Key Features

• Solid carbide micrograin substrate with bright, uncoated finish for non-ferrous metal machining
• Positive rake angle of 21.6 degrees with sharp cutting edge style minimizes cutting forces
• Two cutting edges per insert; single-sided design with right-hand cutting orientation
• Maximum depth of cut of 0.3819 inches with E05 chip breaker geometry
• Corner radius of 0.0157 inches (1/64 inch) for controlled edge profile
• Screw-type insert holding method for secure, repeatable seating in the cutter body
• Conforms to ISO standards; ANSI and ISO code XOEX10T304FR-E05

Compatibility

Compatible with SECO milling cutter series R217.69-10 and R220.69-10 as stated by the manufacturer. Designed for use in XOEX-10 series cutter bodies requiring the XOEX10T304FR-E05 insert geometry.

Installation Notes
