Seco 02823300 Indexable Grooving Toolholder X4 Jet

Product Description

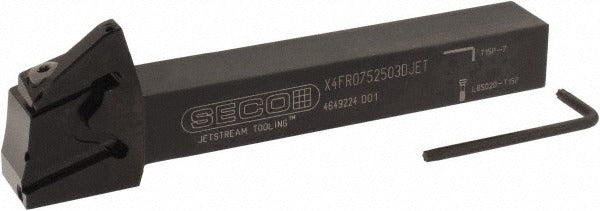

The SECO 02823300 is an external right hand indexable grooving toolholder designed for precision grooving operations on CNC lathes and turning centers. Built on the X4 Jet platform, this toolholder accepts X4GK25..R inserts secured by a clamp-style holding method. It handles groove widths from 0.031 inches to 0.118 inches with a maximum depth of cut of 0.256 inches. Through-coolant capability directs fluid directly to the cutting zone, supporting extended insert life and chip evacuation in demanding applications. The 3/4 inch by 3/4 inch shank and 6 inch overall length make it suitable for a range of lathe setups. Installed by CNC machinists and toolroom professionals working in production and job-shop environments.

This toolholder is intended for external non-face grooving applications where right hand cutting direction is required. It is well-suited for grooving cast iron and similar materials classified under primary workpiece material code K. The X4 Jet series design routes coolant through the body for direct application at the insert, which is especially useful when machining heat-sensitive materials or running high-production cycles that generate significant chip loads. The multi-use designation means a single holder can accommodate a range of compatible insert geometries within the X4GK25..R family, reducing tooling inventory requirements on the shop floor.

Key Features

• Groove width range from 0.031 inches to 0.118 inches with a maximum depth of cut of 0.256 inches
• Through-coolant design delivers fluid directly to the cutting edge for improved chip control and insert life
• Clamp-style insert holding provides secure, repeatable insert positioning under load
• 3/4 inch square shank with 6 inch overall length fits standard lathe and turning center tool blocks
• Compatible with X4GK25..R insert family and compatible insert size code X42503R
• Steel toolholder body engineered for rigidity in external grooving applications
• Multi-use designation supports a range of insert geometries within the X4 series for reduced tooling inventory

Compatibility

Compatible with X4GK25..R series inserts and compatible insert size code X42503R. Also referenced under manufacturer number X4FR/L 0752503DJET. Designed for use in the SECO X4 Jet toolholder series for external non-face grooving on CNC turning equipment.

Installation Notes

Installation and tool setup should be performed by qualified machinists following the machine tool manufacturer guidelines for toolholder mounting and torque procedures. Power down the machine and lock out all motion axes before changing or seating inserts or mounting the toolholder. Connect through-coolant supply lines per the machine tool interface specifications before running. Verify shank seating and overhang before engaging the workpiece.
