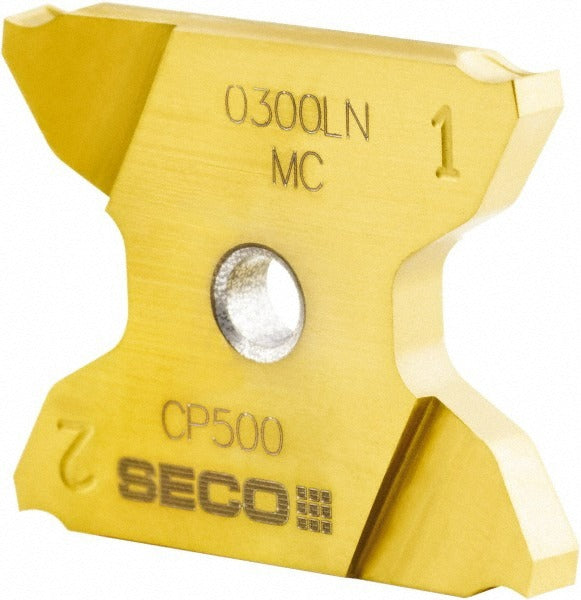

Seco 02823046 Grooving Insert 0.062in Lh Solid Carbide CP500

Product Description

The SECO 02823046 is a double-ended, left-hand grooving insert designed for precision groove turning and parting operations on CNC lathes and turning centers. Built from micrograin solid carbide with a PVD-applied TiAlN and TiN multilayer coating, this insert delivers consistent wear resistance and thermal stability across a wide range of workpiece materials. It carries the CP500 manufacturer grade designation and features a positive rake geometry with a 0-degree rake angle, suited to interrupted and continuous grooving cuts. The MC chip breaker geometry supports controlled chip evacuation at production feed rates. Installation is handled by clamp-style insert holding, compatible with X4-series toolholders.

This insert is intended for use in production turning environments where groove width consistency and surface finish quality are critical. The X4 series is engineered for grooving applications across universal workpiece material categories, including steel, stainless steel, cast iron, non-ferrous metals, heat-resistant superalloys, and hardened materials, corresponding to ISO material groups H, K, M, N, O, P, and S. It is a fit for shops running high-volume turning operations in both CNC production and job-shop settings.

Key Features

• Micrograin solid carbide substrate with PVD TiAlN and TiN coating for extended tool life
• Left-hand cutting orientation, double-ended design for two usable cutting edges per insert
• 0.062-inch cutting width with a 0.0075-inch corner radius for precise groove geometry
• Maximum depth of cut of 0.256 inches, within the 0.200 to 0.300 inch range
• Positive rake, 0-degree rake angle with MC chip breaker for reliable chip control
• Clamp-style insert holding compatible with X4 series toolholders
• Meets ISO standards; rated for universal primary workpiece material applications

Compatibility

Designed for use with X4 series clamp-style grooving toolholders. Compatible with ISO-standard insert seating for the X4GK insert style. Verified for use across ISO workpiece material groups H, K, M, N, O, P, and S as specified by the manufacturer.

Installation Notes

Insert replacement should be performed by a qualified machinist or toolroom technician. Power down and lock out the machine spindle before indexing or replacing the insert. Seat the insert fully against the toolholder pocket and confirm the clamp applies even clamping force before resuming cuts. Follow the toolholder manufacturer torque guidance for clamp screws, and inspect the insert seat for chips or debris before installation.
