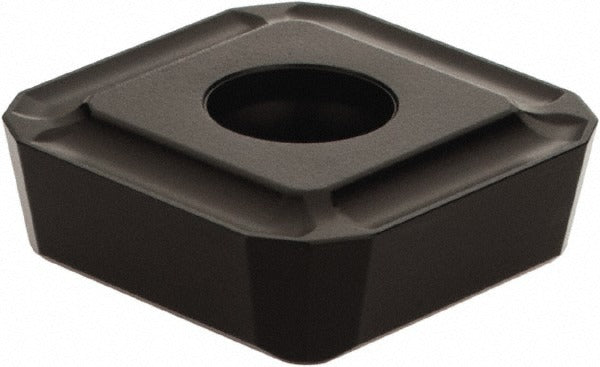

Seco 02807373 Indexable Drill Insert SPGX15C1 DP3000

Product Description

The SECO 02807373 is a solid carbide indexable drill insert designed for use with Perfomax series indexable drills. Manufactured to the SPGX15C1 insert style with a DP3000 grade Duratomic coating, this insert delivers consistent performance in a wide range of workpiece materials. The square 90-degree geometry with a C1 chipbreaker and 11-degree relief angle promotes controlled chip evacuation and stable cutting action. At 0.625 inches inscribed circle diameter and 0.187 inches thick, it conforms to size code 1504. Right-hand cutting direction is standard. Licensed machinists, toolroom technicians, and production CNC operators are the typical end users for this insert.

The 02807373 is suited for drilling operations in both production and job-shop environments. The universal primary workpiece material classification covers steel, stainless steel, cast iron, non-ferrous metals, and aluminum alloys, making it a versatile insert across a broad range of turning and hole-making applications. The Duratomic coating process enhances wear resistance and thermal stability, extending tool life in demanding cutting conditions. This insert is sold individually but must be ordered in multiples of 10 to meet minimum order requirements.

Key Features

• Solid carbide construction with DP3000 Duratomic coating for extended wear resistance
• SPGX insert style with 90-degree square geometry and C1 chipbreaker for controlled chip flow
• 11-degree relief angle supports stable cutting performance and reduced cutting forces
• Universal material grade compatible with steel, stainless, cast iron, non-ferrous, and aluminum workpieces
• Right-hand cutting direction, size code 1504, fits Perfomax series indexable drill bodies

Compatibility

Designed for use in SECO Perfomax series indexable drill bodies requiring SPGX insert style, size code 1504, with a 0.625-inch inscribed circle diameter.

Installation Notes

Insert seating and torque should be performed by a qualified machinist or toolroom technician following the drill body manufacturer torque specifications for the applicable screw size. Power down and lock out all machine spindles before indexing or replacing inserts. Inspect the insert pocket and clamping screw for wear or debris before seating a new insert. Do not exceed the recommended cutting parameters for the grade and coating specified by the manufacturer.
