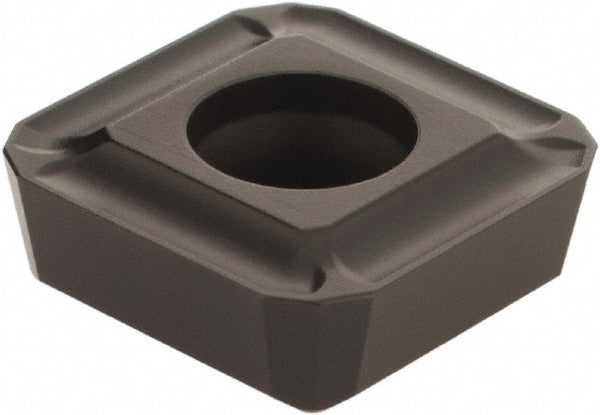

Seco 02807372 Indexable Drill Insert SPGX12C1 DP3000

Product Description

The SECO 02807372 is a solid carbide indexable drill insert designed for use in Perfomax series indexable drills. Carrying the SPGX12C1 designation with manufacturer grade DP3000, this insert features a 90-degree square shape, an 11-degree relief angle, and a Duratomic coating process for extended wear resistance. The inscribed circle measures 0.5000 inches, and the insert thickness is 0.1560 inches. It is suited for right-hand cutting applications across a broad range of workpiece materials. Installation and indexing are performed by machinists and tooling technicians during drill body setup or insert replacement cycles.

This insert is rated for universal primary workpiece material compatibility, covering material codes K, M, N, and P. That range includes cast iron, stainless steel, non-ferrous metals, and steel, making it a versatile choice for production drilling environments. The Perfomax series platform is commonly deployed in CNC machining centers and turning centers where indexable drills are used to produce through-holes and blind holes to close tolerances. The C1 chipbreaker geometry supports controlled chip formation across these material groups.

Key Features

• Solid carbide construction with Duratomic coating process for thermal and wear resistance
• SPGX12C1 geometry: 90-degree square shape with 11-degree relief angle
• DP3000 manufacturer grade optimized for universal workpiece material applications
• Right-hand cutting direction; C1 chipbreaker for controlled chip evacuation
• Inscribed circle of 0.5000 inches; insert size code 12T3
• Compatible with SECO Perfomax series indexable drill bodies

Compatibility

Designed for use with SECO Perfomax series indexable drill bodies requiring SPGX-style inserts in the 12T3 insert size. Confirm seat and screw compatibility with the specific drill body before installing.

Installation Notes

Insert indexing and replacement should be performed by qualified machinists or tooling technicians. Ensure the machine spindle is fully stopped and locked out before accessing the drill body. Clean the insert pocket thoroughly before seating the new insert, and torque the clamping screw according to the drill body manufacturer specifications. Do not use damaged or chipped inserts, as improper seating can result in insert ejection during operation.
