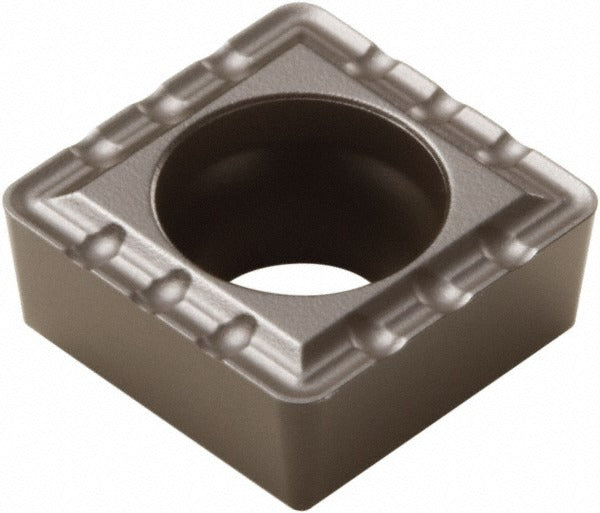

Seco 02807365 SCGX12P1 DP3000 Indexable Drill Insert

Product Description

The SECO 02807365 is a square indexable drill insert designed for use with Perfomax series indexable drills. Manufactured from solid carbide and finished with a Duratomic coating process, this insert carries the DP3000 manufacturer grade and SCGX12P1 designation. It features a 90-degree included angle, a 0.5000-inch inscribed circle, a 0.0310-inch corner radius, and a P1 chipbreaker geometry. The 7-degree relief angle supports effective chip clearance during drilling operations. Licensed machinists and CNC operators install these inserts as part of routine tooling maintenance on indexable drill bodies.

This insert is rated for universal primary workpiece material compatibility, covering a broad range of material codes including H, M, N, P, and S. That range makes it suitable for production drilling applications across ferrous metals, non-ferrous metals, stainless steels, and heat-resistant superalloys. The SCGX insert style seats into compatible Perfomax drill bodies and is a standard consumable in high-volume CNC turning and machining center environments where predictable insert life and consistent hole quality are required.

Key Features

• Solid carbide construction with Duratomic coating process for wear resistance
• DP3000 grade rated for universal workpiece material compatibility across H, M, N, P, and S material codes
• P1 chipbreaker geometry promotes controlled chip formation during drilling
• 7-degree relief angle supports efficient cutting clearance
• 0.0310-inch corner radius reduces insert chipping at entry and exit
• Square SCGX insert style with 90-degree included angle for precise fitment in Perfomax bodies

Compatibility

Designed for use in SECO Perfomax series indexable drill bodies that accept the SCGX insert style, insert size code 12, with a 0.5000-inch inscribed circle. Verify the drill body seat specification before installation.

Installation Notes

Insert replacement is performed by qualified machinists or CNC tooling technicians. Before indexing or replacing inserts, power down the spindle and confirm the machine is in a safe lockout state per facility procedures. Seat the insert fully against the pocket walls and tighten the clamping screw to the drill body manufacturer specification. Inspect the insert pocket for chips or debris before seating a new insert to avoid premature insert failure.
