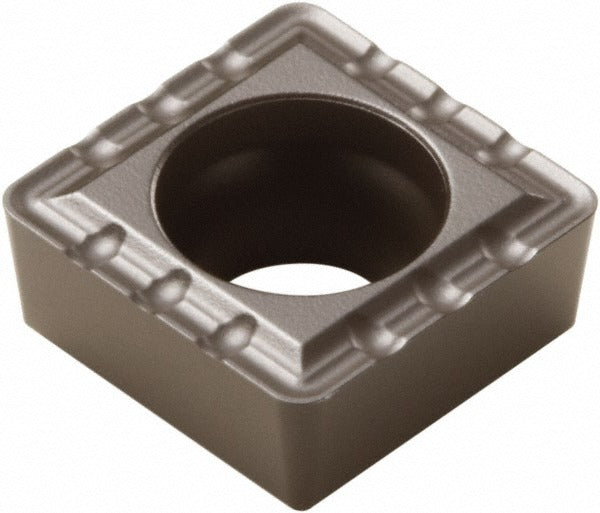

Seco 02807364 Indexable Drill Insert SCGX09P1 DP3000

Product Description

The SECO 02807364 is a solid carbide indexable drill insert designed for use with Perfomax series indexable drills. Featuring the SCGX insert style with a square 90-degree geometry and P1 chipbreaker, this insert is manufactured to the DP3000 grade with a Duratomic coating process for enhanced wear resistance and thermal stability. The inscribed circle measures 0.375 inches with a corner radius of 0.031 inches and a 7-degree relief angle. It is sized to the 09T308 insert size code and is typically installed by machinists and CNC operators in production drilling applications.

This insert is suited for universal workpiece material applications, covering material codes H, M, N, P, and S. That range includes hardened steels, stainless steels, non-ferrous alloys, general steels, and heat-resistant superalloys. It fits Perfomax indexable drill bodies that accept the SCGX09 insert size, making it a direct replacement for worn or chipped inserts in both manual and CNC machining centers. Sold individually, with a minimum order quantity of 10 units.

Key Features

• DP3000 grade with Duratomic coating for extended tool life across diverse materials
• SCGX insert style with 90-degree square geometry and P1 chipbreaker for controlled chip formation
• Universal material compatibility covering H, M, N, P, and S workpiece material codes
• 7-degree relief angle reduces cutting edge friction during drilling
• 0.375-inch inscribed circle and 09T308 size code for precise Perfomax drill body fitment
• Solid carbide substrate for rigidity and dimensional stability under high cutting loads

Compatibility

Designed for use with Perfomax series indexable drill bodies that accept SCGX09 insert size inserts. Compatible with universal workpiece materials under material codes H, M, N, P, and S.

Installation Notes

Insert replacement should be performed with the machine powered down and spindle fully stopped. Use the appropriate Torx or hex key specified by the drill body manufacturer to seat the insert securely in the pocket. Inspect the insert pocket for chips or debris before seating a new insert, as contamination can affect seating accuracy and tool life. Follow the drill body manufacturer guidelines for insert indexing sequence to maintain balance and cutting geometry.
