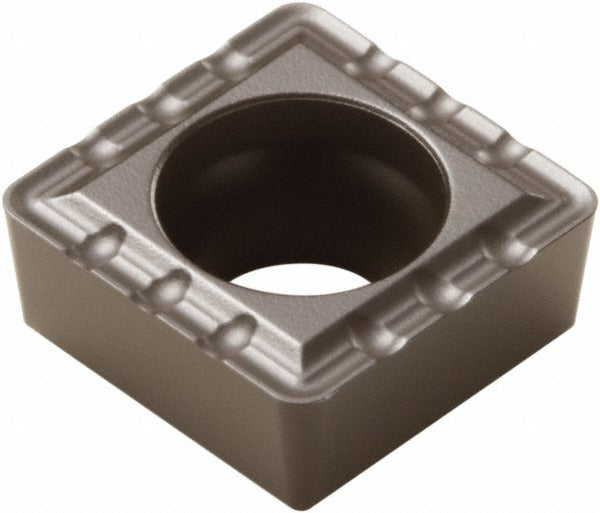

Seco 02807362 Indexable Drill Insert SCGX06P1 DP3000 Carbide

Product Description

The SECO 02807362 is a solid carbide indexable drill insert designed for use with Perfomax series indexable drills. Featuring the SCGX insert style with a square 90-degree geometry and DP3000 Duratomic coating, this insert delivers consistent performance across a wide range of workpiece materials. The inscribed circle measures 0.25 inches with a corner radius of 0.016 inches and a P1 chipbreaker configuration. At a thickness of 0.094 inches, this insert is engineered to seat precisely in compatible Perfomax drill bodies. Licensed machinists and tool-crib professionals handling indexable tooling programs are the typical end users for this insert type.

This insert is rated for universal primary workpiece material compatibility, covering material codes H, M, N, P, and S. That range includes cast iron, non-ferrous alloys, steel, stainless, and superalloys, making it a flexible option for job shops and production environments running varied materials. It is sold individually per package with a minimum order quantity of 10 units, making it suitable for stocking in tooling cribs or maintaining par levels on active drill bodies.

Key Features

• SCGX insert style with 90-degree square geometry for predictable indexing
• DP3000 Duratomic coating process for wear resistance across multiple material groups
• P1 chipbreaker configuration suited to a broad range of cutting conditions
• 0.016 inch corner radius reduces edge chipping on entry and exit
• Universal workpiece material rating covering H, M, N, P, and S material codes
• Perfomax series designation ensures dimensional compatibility with matching drill bodies

Compatibility

Designed for use in SECO Perfomax series indexable drill bodies that accept the SCGX insert style in insert size 060204. Verify pocket seat geometry and screw torque specifications against the drill body documentation before installing.

Installation Notes

Indexable insert replacement is performed by qualified machinists or toolroom personnel following machine lockout and spindle stop procedures. Use the correct Torx or hex key specified by the drill body manufacturer when seating the insert screw — do not use impact drivers or substitute fasteners. Inspect the insert pocket for chips or debris before seating a new insert. Discard inserts showing edge fracture, built-up edge, or coating wear through to the substrate.
