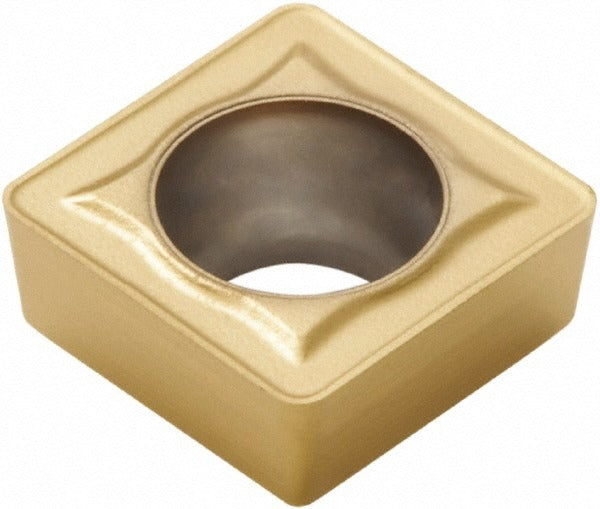

Seco 02794477 SCGX12 T250D Carbide Indexable Drill Insert

Product Description

The SECO 02794477 is an indexable drill insert in the SCGX12 style, manufactured from solid carbide with a PVD-applied T250D grade coating. Designed for use in Perfomax series indexable drills, this insert features a 90-degree square shape with a 7-degree relief angle and a 0.80 mm (0.0315 inch) corner radius. The inscribed circle measures 12.70 mm (0.5000 inches) and thickness runs 0.1874 inches. Installation and changeover are performed by machining professionals and tooling technicians during scheduled insert indexing or replacement cycles on CNC and manual drilling operations.

This insert is suited for a wide range of workpiece materials, classified under universal primary workpiece material codes H, M, N, P, and S. That coverage spans steel, stainless steel, non-ferrous metals, cast iron, and superalloys, making it a versatile choice for job shops, production machining environments, and maintenance operations requiring consistent hole-quality performance in Perfomax-compatible drill bodies.

Key Features

• SCGX12 insert style with 90-degree square geometry and 7-degree relief angle
• Solid carbide substrate with PVD-applied T250D coating for extended tool life
• 0.0315 inch (0.80 mm) corner radius reduces cutting-edge chipping on entry and exit
• Universal material compatibility across codes H, M, N, P, and S
• Inscribed circle of 0.5000 inches (12.70 mm) for consistent sizing in Perfomax drill bodies
• Sold individually; minimum order quantity of 10 units applies

Compatibility

Designed for use with Perfomax series indexable drill bodies that accept SCGX12 insert geometry. No additional specific compatible model numbers were provided in product data.

Installation Notes

Insert changeover should be performed by a qualified machining technician with the drill body removed from the spindle and the machine placed in a locked-out, de-energized state per facility lockout/tagout procedures. Use the appropriate torx or hex key as specified by the drill body manufacturer when securing the insert clamp screw. Inspect the insert pocket and clamping surfaces for chips or debris before seating the new insert. Do not exceed the clamping torque recommended in the drill body documentation.
