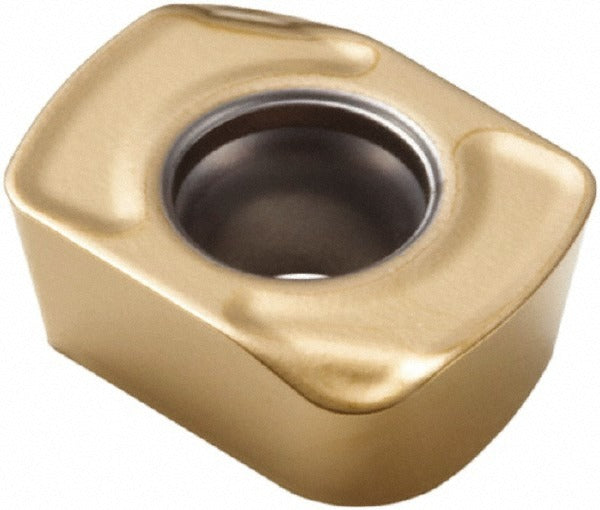

Seco 02789605 Milling Insert LPHT060310TR-M06 F40M Carbide

Product Description

The SECO 02789605 is a solid carbide milling insert carrying ANSI/ISO designation LPHT060310TR-M06 and manufactured grade F40M. It is a single-sided, right-hand, rectangular insert with a positive rake geometry and T-Land cutting edge style. The insert measures 0.25 inches in inscribed circle diameter and 0.1252 inches thick, with a maximum depth of cut of 0.3343 inches. A PVD-applied TiAlN plus TiN dual coating extends tool life across a broad range of workpiece materials. The insert seats and locks via screw-hold clamping and is intended for installation by machinists and tool-room technicians working with compatible milling cutter bodies.

This insert is designed for milling operations on steel, stainless steel, cast iron, non-ferrous metals, superalloys, and titanium. Primary material application codes are P, K, and S, with secondary coverage of K and N. The positive rake angle of 11 degrees and M06 chip breaker geometry make it well suited for light-to-medium roughing and finishing passes where controlled chip flow is required. Typical installation scenarios include face milling and shoulder milling in both production and maintenance-repair machining environments.

Key Features

• Solid carbide fine-grain substrate with PVD TiAlN plus TiN dual coating for wear resistance
• Positive 11-degree rake angle with T-Land cutting edge style for controlled chip formation
• Corner radius of 0.0394 inches for surface finish control and edge strength
• Two cutting edges per insert, single-sided, right-hand orientation
• Maximum depth of cut of 0.3343 inches with effective cutting edge length of 0.3343 inches
• Compatible cutter series R217.21-LP06 and R220.21-LP06 per supplier data

Compatibility

Designed for use in cutter series R217.21-LP06 and R220.21-LP06. Insert series is LPHT-06 with size code 060310. Conforms to ISO standards per ANSI/ISO code LPHT060310TR-M06.

Installation Notes

Installation is performed by qualified machinists or tooling technicians. Power down and lock out the machine spindle before seating or removing inserts. Use the appropriate torx or hex key to torque the clamping screw to the cutter body manufacturer specification — do not overtighten, as this can fracture the carbide insert. Inspect the pocket seating surface for chips or debris before installing a fresh insert.
