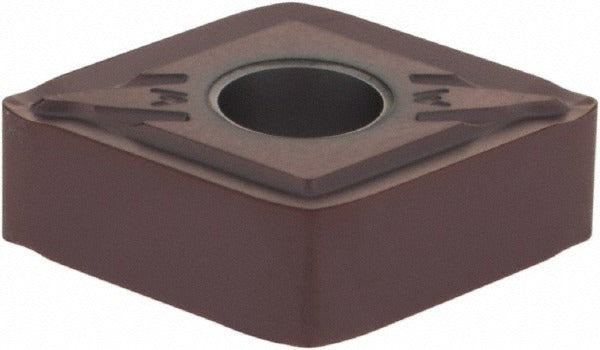

Seco 02787041 Turning Insert CNMG432W-FF2 TP1030 Cermet

Product Description

The SECO 02787041 is a CNMG432W-FF2 cermet turning insert with a TiAlSiN multilayer PVD coating and TP1030 manufacturer grade. It features an 80-degree diamond shape with a neutral hand orientation, a 0.5 inch inscribed circle, and a 0.0315 inch corner radius. The FF2 chip breaker geometry is designed for finishing and semi-finishing operations. With four cutting edges and a honed cutting edge style, this insert is suited for high-volume steel and stainless steel turning applications. It is installed and indexed by machining professionals in production and job-shop environments.

This insert is designed for boring, facing, and turning operations with a primary focus on steel (ISO material code P) and a secondary application in stainless steel (ISO material code M). It falls within the P10 and P15 material grade range, making it well-suited for light-to-medium cutting conditions where surface finish and dimensional accuracy are priorities. The insert is compatible with toolholders using clamp, pin, or lever lock holding methods and meets both ANSI and ISO standards. The ISO designation for this insert is CNMG120408W-FF2.

Key Features

• TiAlSiN multilayer PVD coating for wear resistance in steel and stainless steel cutting
• FF2 chip breaker geometry optimized for finishing and semi-finishing passes
• Four indexable cutting edges for extended tool life per insert
• Honed cutting edge style reduces micro-chipping at the cutting edge
• Negative rake geometry with 0-degree relief angle for maximum edge strength
• Compatible with clamp, pin, and lever lock toolholder systems

Compatibility

Designed for use in CNMG-style toolholders that accept clamp, pin, or lever lock insert holding methods. Meets ANSI and ISO standards; ISO designation CNMG120408W-FF2. Suitable for boring, facing, and turning operations on steel and stainless steel workpieces within the P10 and P15 material grade range.

Installation Notes

Installation is performed by qualified machinists or tooling technicians. Power down and lock out the machine spindle before indexing or replacing the insert. Ensure the insert pocket and seating surfaces are clean and free of chips before seating the new insert. Torque clamping hardware according to the toolholder manufacturer specifications, which are not included with the insert.
