Seco 02783923 Milling Insert Xomx 10T308TR-M09 MP3000

Product Description

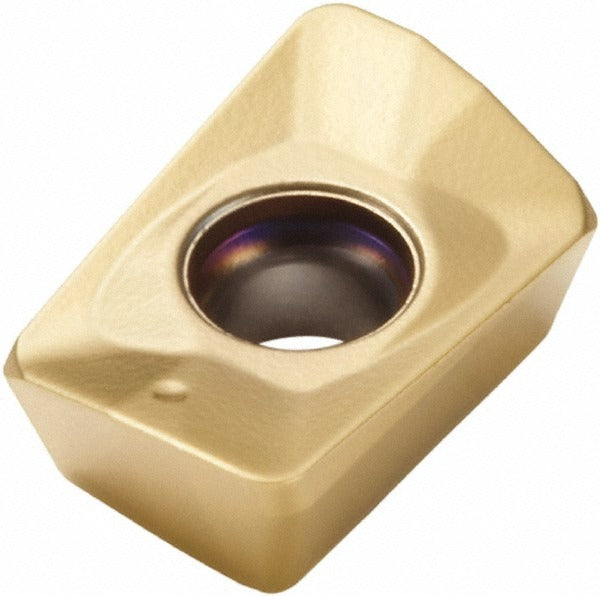

The SECO 02783923 is a solid carbide milling insert carrying the XOMX 10T308TR-M09 designation and manufactured to the MP3000 micrograin grade. It features a TiAlN coating applied via PVD process, which provides thermal resistance and wear performance when cutting hard materials, steel, and stainless steel. The parallelogram insert body has a positive rake geometry with a 10.6-degree rake angle and a T-Land cutting edge style, contributing to stable chip formation and controlled engagement in demanding milling operations. With two cutting edges and a right-hand orientation, it is sized at 0.3661 inches long, 0.2717 inches wide, and 0.1508 inches thick, with a 0.0315-inch corner radius.

This insert is designed for use in milling applications targeting hard materials (ISO material code H), steel, and stainless steel (ISO material codes P and M). It suits production and job-shop environments where consistent performance in interrupted cuts or difficult-to-machine alloys is required. The insert is held in the toolholder via screw clamping and is compatible with the R217.69-10 and R220.69-10 cutter series, making it applicable across a range of face milling and shoulder milling setups where the XOMX-10 series toolholders are in use.

Key Features

• Solid carbide micrograin substrate with TiAlN PVD coating for extended tool life in hard and ferrous materials
• Positive rake geometry at 10.6 degrees with T-Land cutting edge for controlled chip flow and reduced cutting forces
• Two cutting edges per insert, right-hand orientation, single-sided design
• 15-degree relief angle for clearance and reduced flank wear in finish and semi-finish passes
• Maximum depth of cut and cutting edge effective length both at 0.3661 inches
• Screw-held insert with 0.1181-inch hole diameter for secure, repeatable seating in compatible toolholders
• Conforms to ISO standard geometry; ANSI and ISO code XOMX10T308TR-M09

Compatibility

Compatible with the R217.69-10 and R220.69-10 cutter series as specified by the manufacturer. Designed for milling hard materials, steel, and stainless steel applications using XOMX-10 series toolholders.

Installation Notes
