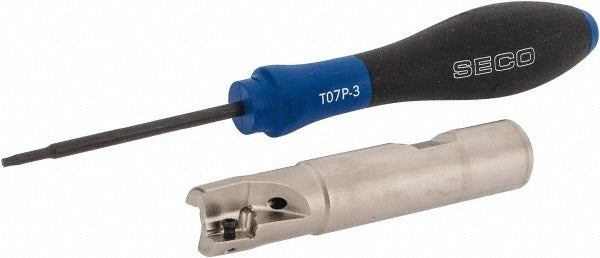

Seco 02772634 Indexable Square-shoulder End Mill 5/8 in

Product Description

The SECO 02772634 is an indexable square-shoulder end mill built for precision milling operations in metal-cutting environments. Part of the Turbo 10 series, this toolholder accepts XO.X 10T3.. style inserts and is compatible with XOEX and XOMX insert families. It features a 5/8 inch cutting diameter, a 90-degree lead angle, and a maximum depth of cut of 0.354 inches. The steel body incorporates through-coolant capability and a Weldon flat shank for secure chuck retention. With a maximum spindle speed of 29,400 RPM, it suits high-throughput roughing and shoulder milling applications. Installation and setup are handled by machinists and toolroom technicians.

This end mill is designed for shoulder milling and face milling operations on machining centers and CNC mills. The 90-degree lead angle produces true square shoulders, making it suitable for stepped features, pockets, and flat-bottom profiles. The through-coolant design supports chip evacuation and tool life in ferrous and non-ferrous materials. With two cutter positions and a negative rake geometry, the toolholder is optimized for productive cuts at elevated feeds. The ISO designation for this toolholder is R217.69-00.625-3-10-2A.

Key Features

• 90-degree lead angle for true square-shoulder milling
• Through-coolant capability for improved chip evacuation and thermal control
• Accepts XO.X 10T3.. inserts; compatible with XOEX and XOMX insert families
• Weldon flat shank for positive drive and reduced pullout risk
• Maximum spindle speed of 29,400 RPM supports high-productivity applications
• 2-insert, negative-rake design in the Turbo 10 series

Compatibility

Designed for use with XO.X 10T3.. inserts. Complete insert compatibility includes XOEX and XOMX insert styles. ISO toolholder designation R217.69-00.625-3-10-2A. Verify insert style and screw torque specifications against current SECO Turbo 10 series documentation before use.

Installation Notes

This toolholder is installed and serviced by qualified machinists or toolroom personnel. Before changing inserts or mounting the tool, ensure the spindle is fully stopped and the machine is in a safe, locked-out state. Secure the Weldon flat shank using the appropriate set screw and holder per the machine tool manufacturer specifications. Confirm coolant line connections are clear and through-coolant flow is verified before initiating a cut.
