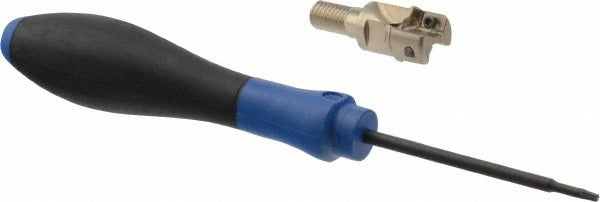

Seco 02772627 Indexable Square-shoulder End Mill 5/8 in

Product Description

The SECO 02772627 is an indexable square-shoulder end mill from the Turbo 10 series, designed for precision milling operations in metal cutting environments. Built on a steel body with an M8 modular connection shank, this toolholder accepts XOEX and XOMX insert styles and operates at up to 29,400 RPM. The 90-degree lead angle delivers true square-shoulder cuts, while through-coolant capability supports chip evacuation and tool life at elevated cutting speeds. With a cutting diameter of 0.625 inches and a maximum depth of cut of 0.157 inches, it is sized for tight-tolerance shoulder milling work. Installation and setup are handled by machinists and CNC tooling specialists.

This end mill is suited for square-shoulder milling applications on machining centers and CNC mills where modular quick-change tooling systems are in use. The M8 modular connection integrates with compatible modular tooling systems, reducing changeover time in production environments. The two-flute, two-insert configuration supports controlled material removal in steel, cast iron, and similar workpiece materials. Through-coolant delivery keeps the cutting zone clear during deep-reach or high-feed passes. The Turbo 10 series designation indicates compatibility with SECO Turbo 10 insert geometry families.

Key Features

• 5/8 inch (0.625 inches) cutting diameter with a 90-degree lead angle for true square-shoulder milling
• Maximum depth of cut of 0.157 inches for controlled, repeatable shoulder passes
• M8 modular connection shank for integration with compatible modular tooling systems
• Through-coolant capability for improved chip evacuation and thermal management
• Accepts XOEX and XOMX insert styles for flexible insert selection
• Rated up to 29,400 RPM for high-speed milling applications
• 2-insert, 2-flute design with screw-lock insert retention and negative rake geometry

Compatibility

Designed for use with XOEX and XOMX insert styles in the SECO Turbo 10 series. ISO designation R217.69-00.62508RE102A. Compatible with M8 modular tooling connection systems. Insert holding is by screw mount.

Installation Notes

This toolholder is installed and configured by qualified machinists or CNC tooling technicians. Ensure the machine spindle and modular connection interface are clean and free of debris before mounting. Power down and lock out the machine before any insert change or toolholder swap. Follow the insert manufacturer torque specifications for the screw-lock fastener and confirm through-coolant passages are clear before resuming operation.
