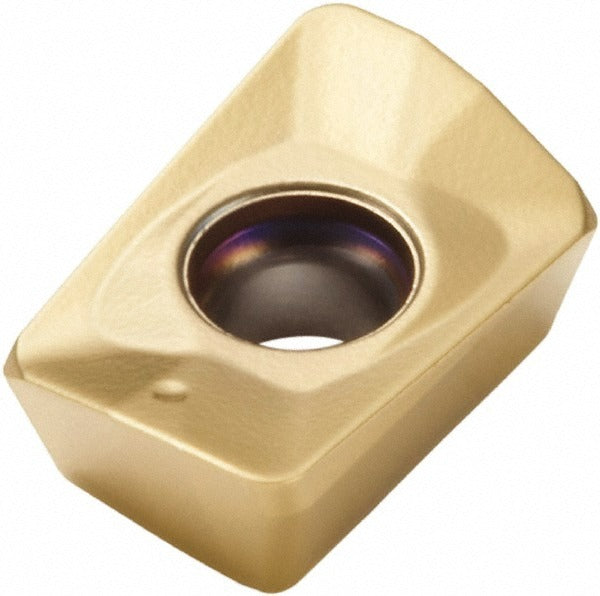

Seco 02768597 Milling Insert XOMX10T308TR-M09 F40M Carbide

Product Description

The SECO 02768597 is a solid carbide milling insert with ANSI and ISO designation XOMX10T308TR-M09, manufactured to the F40M fine-grain carbide grade. It carries a dual-layer TiAlN and TiN coating applied via PVD process, which supports extended tool life across a range of ferrous and non-ferrous materials. The insert features a parallelogram shape with a 90-degree included angle, positive rake geometry at 10.6 degrees, and a T-Land cutting edge style. With 2 cutting edges and a right-hand orientation, it is held in the cutter body by a screw. Licensed HVAC, plumbing, and electrical trade professionals will not encounter this part, as it is a precision machining consumable installed by CNC machinists and tooling specialists.

This insert is suited for milling operations on steel, stainless steel, cast iron, non-ferrous metals, superalloys, and titanium. It fits within the XOMX-10 series and is compatible with SECO cutter series R217.69-10 and R220.69-10. The M09 chip breaker geometry supports medium-duty cutting conditions. At 0.3661 inches maximum depth of cut and 0.3661 inches cutting edge effective length, it is appropriate for moderate material removal rates in both roughing and semi-finishing applications on CNC milling machines.

Key Features

• F40M fine-grain solid carbide grade with TiAlN and TiN PVD coating for wear resistance on steel and cast iron
• Parallelogram insert shape with 90-degree included angle and positive 10.6-degree rake angle
• T-Land cutting edge style reduces chipping on interrupted cuts and harder materials
• M09 chip breaker optimized for medium-duty milling of steel, stainless steel, and superalloys
• 2 cutting edges, right-hand orientation, screw-mount holding method
• Compatible with SECO R217.69-10 and R220.69-10 cutter bodies

Compatibility

Designed for use with SECO cutter series R217.69-10 and R220.69-10. ANSI and ISO code XOMX10T308TR-M09 confirms fitment to any cutter body accepting the XOMX 10T308 insert pocket geometry.

Installation Notes

Installation is performed by a qualified CNC machinist or tooling technician. Ensure the machine spindle is fully stopped and locked out before seating or removing the insert. Use the manufacturer-specified torx or hex key to tighten the clamping screw — do not overtighten, as solid carbide inserts are brittle and can crack under excessive clamping force. Inspect the insert pocket for debris or damage before seating a new insert.
