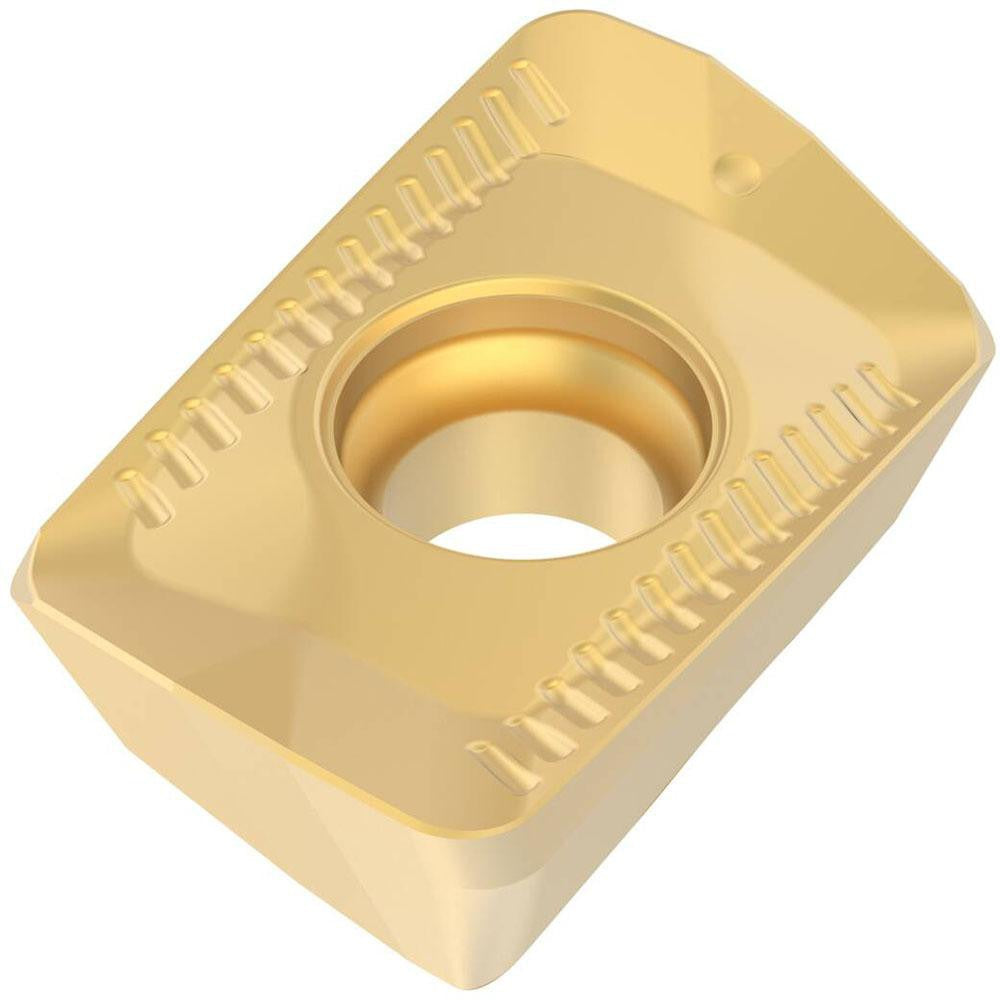

Seco 02768522 Milling Insert XOMX10T304TR-ME07 MP3000

Product Description

The SECO 02768522 is a solid carbide milling insert carrying the ANSI/ISO designation XOMX10T304TR-ME07 in manufacturer grade MP3000. This single-sided, right-hand insert features a parallelogram shape with a 90-degree included angle and a positive rake geometry at 20.4 degrees. The micrograin carbide substrate is PVD-coated with TiAlN for thermal stability and edge retention when cutting hard materials and steels. With two cutting edges and a T-Land cutting edge style, the insert is designed for shoulder milling applications where consistent edge life and chip control are priorities. It measures 0.3661 inches in length, 0.2717 inches inscribed circle diameter, and 0.1508 inches thick.

This insert is suited for milling steel, stainless steel, and hard materials in both production and job-shop environments. The ME07 chip breaker geometry manages chip flow at moderate to aggressive depths of cut, making it appropriate for roughing and semi-finishing passes on ferrous and hardened workpieces. It is held in place by a screw-in mounting method and is compatible with SECO cutter series R217.69-10 and R220.69-10. Machinists and CNC operators working with ISO-standard tooling systems will find this insert fits standard 10-series pockets.

Key Features

• Solid micrograin carbide substrate with PVD TiAlN coating for extended tool life in hard and ferrous materials
• Positive rake angle of 20.4 degrees and T-Land cutting edge style reduce cutting forces and protect the edge
• ME07 chip breaker geometry controls chips across a range of depths of cut
• Two usable cutting edges per insert for cost efficiency
• Maximum depth of cut and cutting edge effective length of 0.3661 inches
• Screw-in insert holding method for secure, repeatable seating in compatible cutter bodies

Compatibility

Designed for use with SECO cutter series R217.69-10 and R220.69-10. Insert designation XOMX10T304TR-ME07 conforms to ANSI and ISO standards for 10-series shoulder milling pockets.

Installation Notes

Installation is performed by machinists or CNC tooling technicians. Always power down and lock out the machine spindle before changing inserts. Use the correct torx or hex key to seat the clamping screw to the cutter body manufacturer's specified torque range as listed in the cutter body documentation. Inspect the pocket seat and screw threads for debris or damage before installing a new insert.
