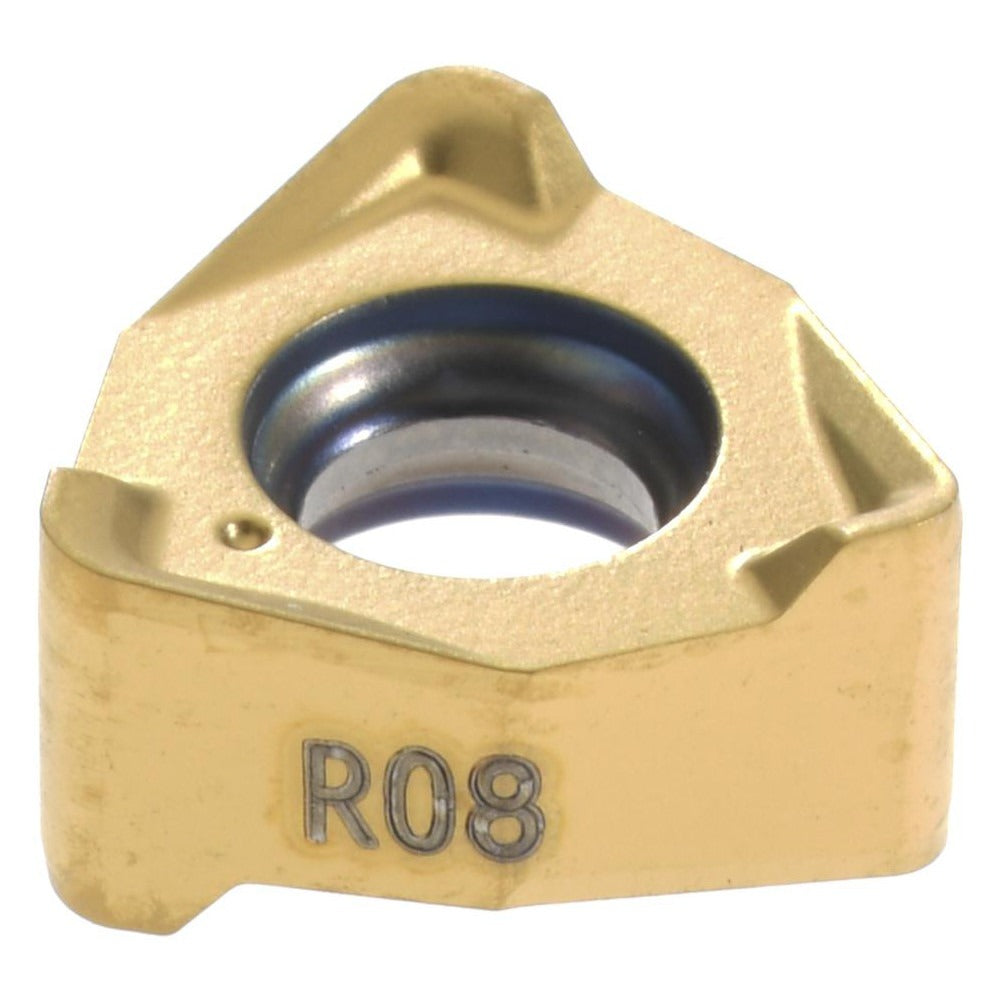

Seco 02766022 Milling Insert XNEX040308TR-M08 F40M Carbide

Product Description

The SECO 02766022 is a solid carbide milling insert carrying the ANSI/ISO designation XNEX040308TR-M08 in manufacturer grade F40M. This double-sided, right-hand trigon-shaped insert features six cutting edges and a PVD-applied TiAlN plus TiN coating for wear resistance at elevated cutting temperatures. The M08 chip breaker geometry uses a T-Land cutting edge style with a negative rake angle of 27 degrees. Corner radius measures 1/32 inch (0.0315 inches), inscribed circle diameter is 0.2638 inches, and maximum depth of cut reaches 0.1575 inches. Licensed machinists and CNC tooling specialists install this insert in compatible milling cutter bodies for high-productivity metal removal operations.

This insert is rated for primary use in steel, cast iron, and superalloys and titanium (ISO material codes P, K, S), with secondary application in cast iron and non-ferrous metals (K, N). Its double-sided design with six usable cutting edges makes it well-suited for face milling and shoulder milling operations where insert economy and consistent edge performance are priorities. Compatible cutter series include R217.96-04 and R220.96-04, as specified by the manufacturer. The insert is sold individually with a minimum order quantity of 10 units.

Key Features

• Double-sided trigon insert with 6 cutting edges for extended insert life per unit
• PVD-coated TiAlN and TiN finish resists heat and abrasive wear on ferrous and exotic workpieces
• M08 chip breaker with T-Land edge style controls chip formation across varied feed rates
• Negative rake geometry (27 degrees) provides edge strength for interrupted cuts and hard materials
• Fine grain solid carbide substrate supports precise, repeatable edge geometry
• Screw-held mounting interface for secure, repeatable seating in compatible cutter bodies

Compatibility

Compatible with cutter series R217.96-04 and R220.96-04 as stated by the manufacturer. Insert conforms to ISO standards under ANSI/ISO code XNEX040308TR-M08, series XNEX-04.

Installation Notes

Installation is performed by a machinist or CNC tooling technician. Power down and lock out the machine spindle before seating or replacing inserts. Use the correct torx or hex key to the cutter body manufacturer's specified seating procedure to avoid cracking the carbide substrate. Inspect the cutter pocket seat for debris or damage before installing a fresh insert.
