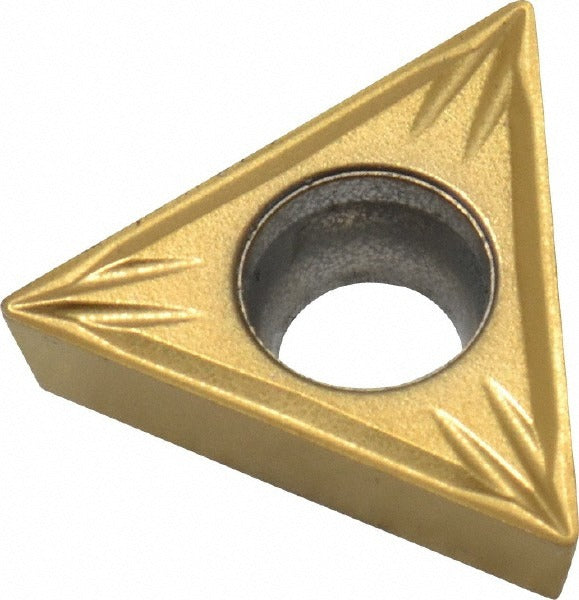

Seco 02755045 Turning Insert Tcmt Triangle Carbide

Product Description

The SECO 02755045 is a solid carbide turning insert in the TCMT style, designed for precision metal cutting on CNC lathes and manual turning centers. It features a triangular insert shape with a 60-degree included angle, a 3/8-inch inscribed circle, and a 1/64-inch corner radius. The insert carries a multilayer PVD TiAlN and TiN coating under the CP500 manufacturer grade, which provides wear resistance and thermal stability during high-speed turning. It is installed and changed by machinists and CNC operators in production and job-shop environments.

This insert is suited for turning, facing, boring, and back turning operations. Its primary target workpiece material is stainless steel, with secondary suitability for steel, cast iron, super-alloys, and titanium. It is appropriate for material grades M10, M20, and M30. The MF2 chip breaker geometry and positive rake are optimized for light-to-medium depth cuts with good chip control on difficult-to-machine alloys. It ships individually but must be ordered in multiples of 10.

Key Features

• Solid carbide substrate with multilayer PVD TiAlN and TiN coating for extended tool life on stainless and high-temp alloys
• MF2 chip breaker geometry with positive rake for controlled chip evacuation
• Chamfered and honed cutting edge style for edge stability and reduced built-up edge
• 3 usable cutting edges per insert for cost efficiency
• Screw-on insert holding method compatible with standard TCMT pockets
• Multi-use application: turning, facing, boring, and back turning

Compatibility

Designed for use in tool holders with TCMT-style insert pockets. ISO code TCMT16T304-MF2 and industry standard number TCMT32.51-MF2 apply. Conforms to ANSI and ISO standards for TCMT series inserts.

Installation Notes

Installation is performed by a qualified machinist or CNC operator. Power down and lock out the machine before seating or indexing the insert. Use the appropriate torx or hex key to torque the clamping screw to the tool holder manufacturer specification. Inspect the insert pocket and seating surface for chips or debris before installing a new edge to ensure proper seating and prevent premature edge failure.
