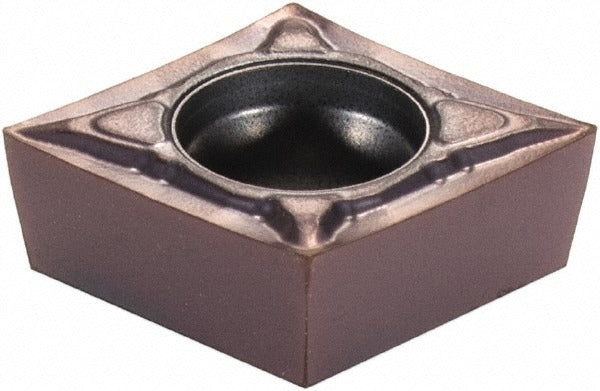

Seco 02754806 Turning Insert CCMT32.50.5F1 TP1030 Cermet

Product Description

The SECO 02754806 is a cermet turning insert in the CCMT series, designed for precision metal-cutting operations on CNC lathes and turning centers. It carries the industry standard designation CCMT32.50.5-F1 (ISO: CCMT09T302-F1) and is manufactured in grade TP1030 with a multilayer TiAlSiN PVD coating. The 80-degree diamond shape and F1 chip breaker geometry deliver a sharp cutting edge with positive rake, making it well suited for light-to-medium passes on steel and stainless steel. The insert has a 3/8-inch inscribed circle and a corner radius of 0.0079 inches, supporting controlled chip formation and consistent surface finish.

This insert is intended for finishing and semi-finishing applications including turning, facing, and boring. Its neutral hand orientation fits standard CCMT-compatible toolholders used in both horizontal and vertical turning setups. Primary workpiece material is steel (ISO P10-P15); secondary workpiece material is stainless steel. The sharp cutting edge and cermet substrate perform best at moderate cutting speeds with light chip loads, particularly where dimensional accuracy and surface quality are priorities in production turning environments.

Key Features

• Cermet substrate with multilayer TiAlSiN PVD coating for wear resistance on steel and stainless steel
• F1 chip breaker geometry with positive rake and sharp cutting edge for light-to-medium finishing cuts
• 80-degree diamond insert shape (Shape Code C) provides strong nose angle with good access for profiling
• 2 cutting edges per insert; screw-holding method for secure, repeatable seating in toolholder
• Compatible with boring, facing, and turning operations — multi-use application flexibility
• Meets ANSI and ISO standards; industry standard number CCMT32.50.5-F1

Compatibility

Designed as a direct-fit replacement for CCMT-style toolholders accepting a 3/8-inch inscribed circle insert with screw clamping. Suitable for toolholders conforming to ANSI and ISO CCMT09T302 seating geometry. Refer to your toolholder documentation to confirm insert pocket dimensions before installation.

Installation Notes

Installation should be performed by a qualified machinist or CNC tooling technician. Always power down and lock out the machine spindle before changing inserts. Use the appropriate torque wrench and insert screw specified by the toolholder manufacturer — do not overtighten the clamping screw. Inspect the insert pocket and seating surface for chips or debris before seating the new insert to ensure proper contact and edge alignment.
