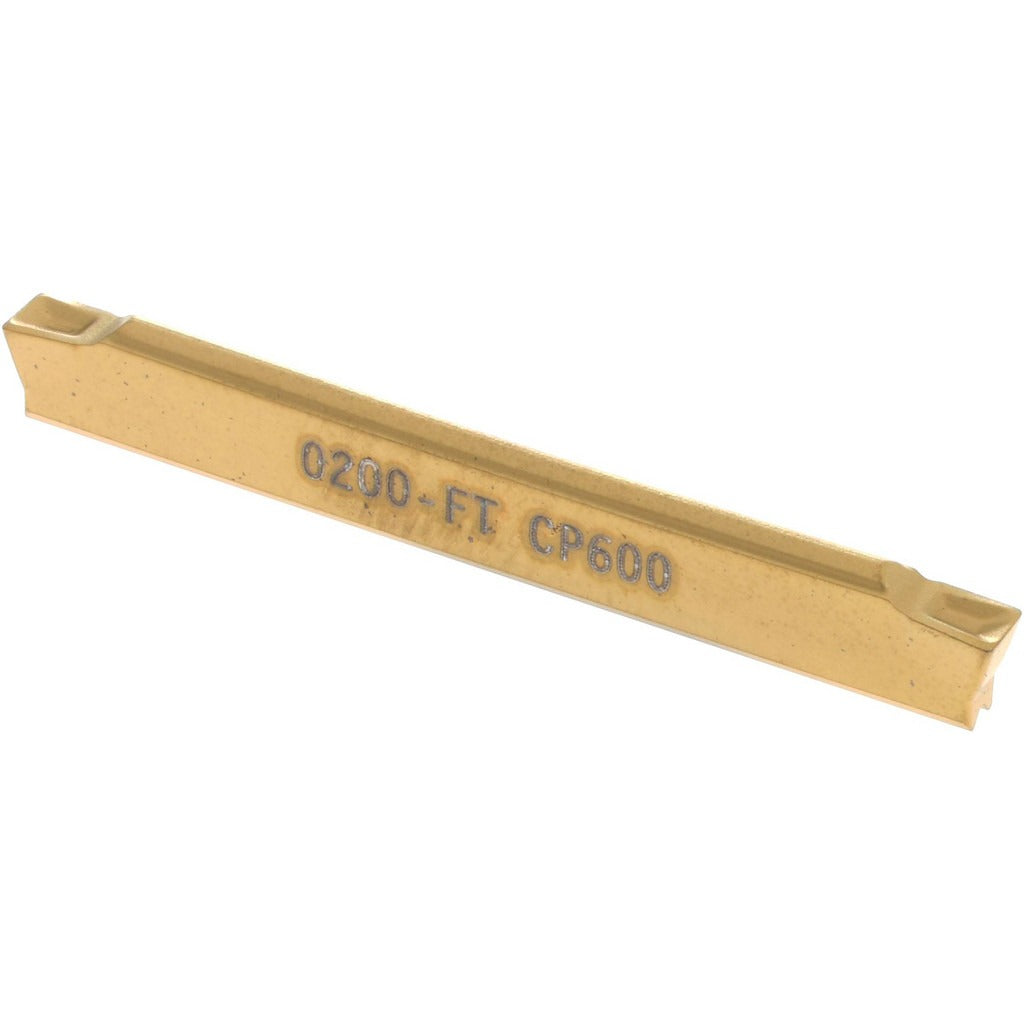

Seco 02749196 LCMF280202-0200-FT Grooving Insert CP600

Product Description

The SECO 02749196 is a solid carbide multi-directional turning insert designed for grooving operations on CNC lathes and turning centers. Cataloged under manufacturer part number LCMF280202-0200-FT, this insert carries the CP600 grade with a PVD coating process, delivering wear resistance across a range of workpiece materials. The insert style is LCMF with a neutral hand orientation, making it suitable for both left- and right-approach grooving setups. It belongs to the MDT (Multi-Directional Turning) series and features the FT chipbreaker geometry. Toolroom technicians and CNC machinists install this insert as a direct replacement in compatible MDT toolholders.

This insert is intended for grooving applications across multiple workpiece material categories, including stainless steel (M), non-ferrous metals (N), steel (P), and high-temperature superalloys (S). The neutral hand configuration allows flexibility in programming approach directions without changing the toolholder. It is commonly used in precision turning operations in aerospace, general machining, and industrial manufacturing environments where consistent chip control and groove width accuracy are required. Sold individually, with a minimum order quantity of 10 pieces per order.

Key Features

• CP600 grade with PVD coating for extended tool life across multiple material groups
• FT chipbreaker geometry optimized for controlled chip formation during grooving
• Neutral hand insert style supports flexible approach directions
• Maximum cutting width of 0.0790 inches (2.00 mm) for precise groove sizing
• Solid carbide construction rated at material grade C5
• LCMF insert style fits MDT series toolholding systems

Compatibility

Designed for use in MDT series toolholders accepting LCMF-style inserts. Verify seat geometry and clamping configuration against the toolholder specification before installation.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician familiar with indexable insert toolholders. Power down and lock out the machine before changing inserts. Use the correct torque wrench and clamping screw specified by the toolholder manufacturer — do not over-tighten, as this can fracture the carbide insert. Inspect the insert seat for chips or debris before seating the new insert.
