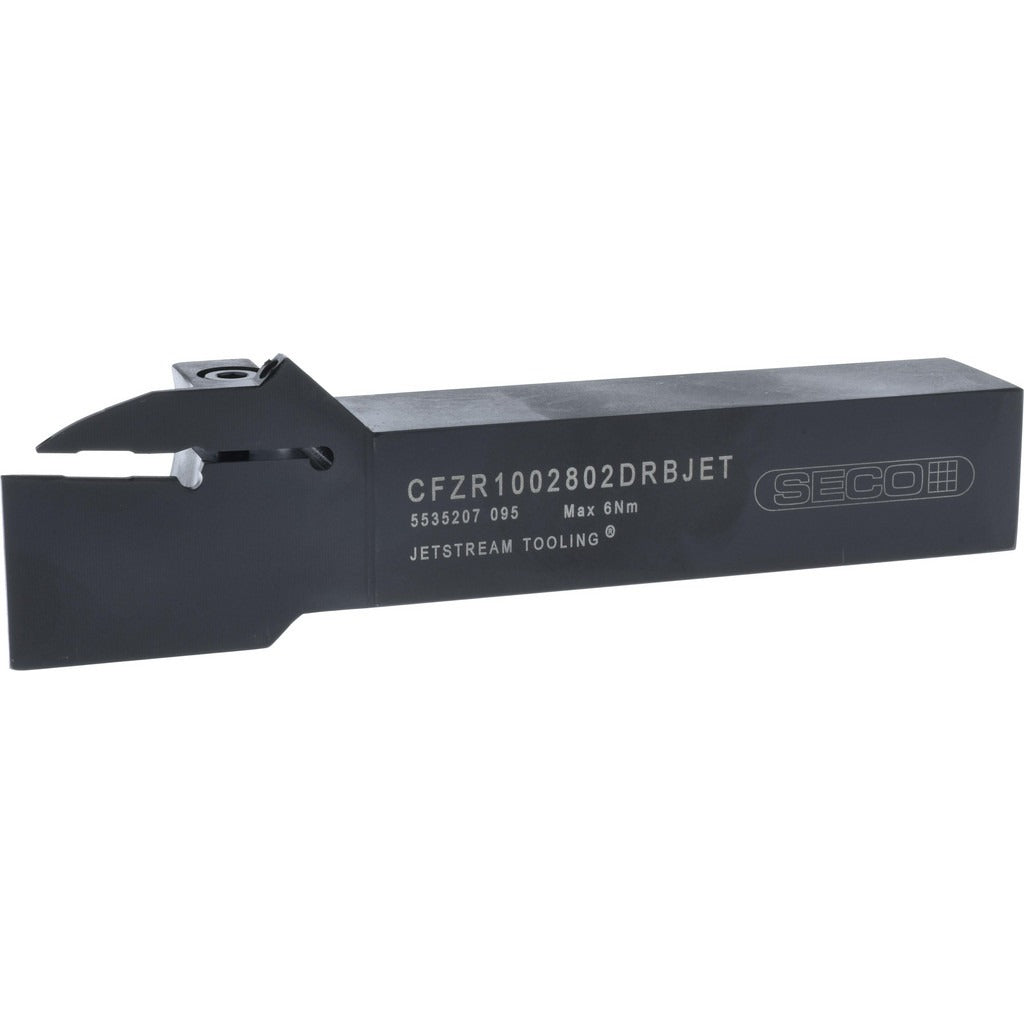

Seco 02749014 Cfzr Indexable Turning Toolholder

Product Description

The SECO 02749014 is a right-hand CFZR-style indexable turning toolholder designed for cut-off and grooving operations on CNC lathes and turning centers. Part of the Multi-Directional Turning (MDT) series, it accepts LC.. 2802.. inserts held by a clamp-style insert holding method. The shank measures 1 inch wide by 1 inch tall with an overall length of 6 inches, making it a compact and rigid choice for precision grooving work. Constructed from steel, it delivers the rigidity and wear resistance needed for consistent performance in production turning environments. Licensed machinists and CNC operators install this toolholder as a direct-mount solution for external grooving and parting applications.

This toolholder is suited for external grooving and cut-off work on manual lathes and CNC turning centers in both job shop and production environments. The CFZR style provides a 90-degree lead angle with a right-hand cutting direction, supporting multi-directional turning strategies. The head length is 2.03 inches with a back-of-bar to cutting edge distance of 1 inch and a maximum depth of cut of 2.21 inches. Insert width compatibility is 0.079 inches, matched to the LC2802 insert size code.

Key Features

• CFZR toolholder style with 90-degree lead angle for precise grooving and cut-off operations
• Right-hand cutting direction with clamp-style insert retention for secure indexing
• Accepts LC.. 2802.. inserts with 0.079-inch insert width
• 1 inch x 1 inch steel shank with 6-inch overall length for rigid tool setup
• Maximum depth of cut of 2.21 inches for deep grooving applications
• Multi-use tool designation within the MDT series for versatile turning applications

Compatibility

Compatible with LC.. 2802.. series inserts using the LC2802 insert size code. Designed for use within the SECO Multi-Directional Turning (MDT) series tooling system. Manufacturer catalog number CFZR 100 2802DRBJET.

Installation Notes

Installation is performed by licensed machinists or CNC tooling technicians. Power down and lock out the machine before mounting or indexing inserts. Ensure the shank is fully seated and clamped in the tool turret or toolpost to the machine manufacturer's specified torque per the machine documentation. Follow shop safety protocols and applicable OSHA machining standards when handling indexable inserts.
