Seco 02749006 Cfzr Indexable Turning Toolholder

Product Description

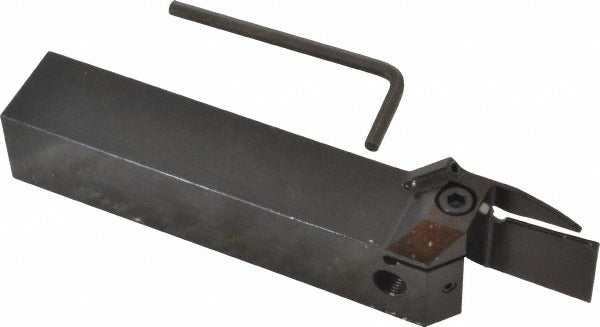

The SECO 02749006 is a right-hand CFZR-style indexable turning toolholder designed for cut-off and grooving operations on CNC and manual turning equipment. It accepts LC.. 2802.. series inserts secured by a clamp-style holding method, providing consistent insert positioning under interrupted and continuous cutting loads. The toolholder features a 1 inch by 1 inch square shank and an overall length of 6 inches, making it a standard fit for most 1-inch boring bar stations and external toolpost positions. The body is constructed from steel for rigidity and long service life in production turning environments. This toolholder is part of the Multi-Directional Turning (MDT) series.

The 02749006 is suited for both production shops and job shops running external cut-off and grooving applications. With a 90-degree lead angle and a maximum depth of cut of 1.1 inches, it handles a range of groove widths determined by the LC.. 2802.. insert selected. The head length of 1.97 inches and a back-of-bar to cutting edge distance of 1 inch allow precise tool positioning relative to the workpiece centerline. This toolholder is flagged as a multi-use tool, supporting versatility across compatible setups.

Key Features

• CFZR toolholder style with 90-degree lead angle for direct cut-off and grooving
• Right-hand cutting direction with clamp-style insert retention for secure seating
• Compatible with LC.. 2802.. inserts, including 0.079 inch insert width
• 1 inch by 1 inch steel shank, 6 inches overall length
• Maximum depth of cut: 1.1 inches
• Multi-use designation supports multiple groove configurations with insert changes

Compatibility

Designed for use with LC.. 2802.. series inserts (compatible insert size code LC2802). Catalog reference: CFZR 100 2802DJET.

Installation Notes

Installation is performed by a machinist or CNC tooling technician. Secure the toolholder in the turret or toolpost before powering on the machine, and verify insert seating and clamping torque per the insert manufacturer's clamping guidelines. Confirm tool centerline height before the first cut. Do not exceed the maximum depth of cut of 1.1 inches for the selected insert.
