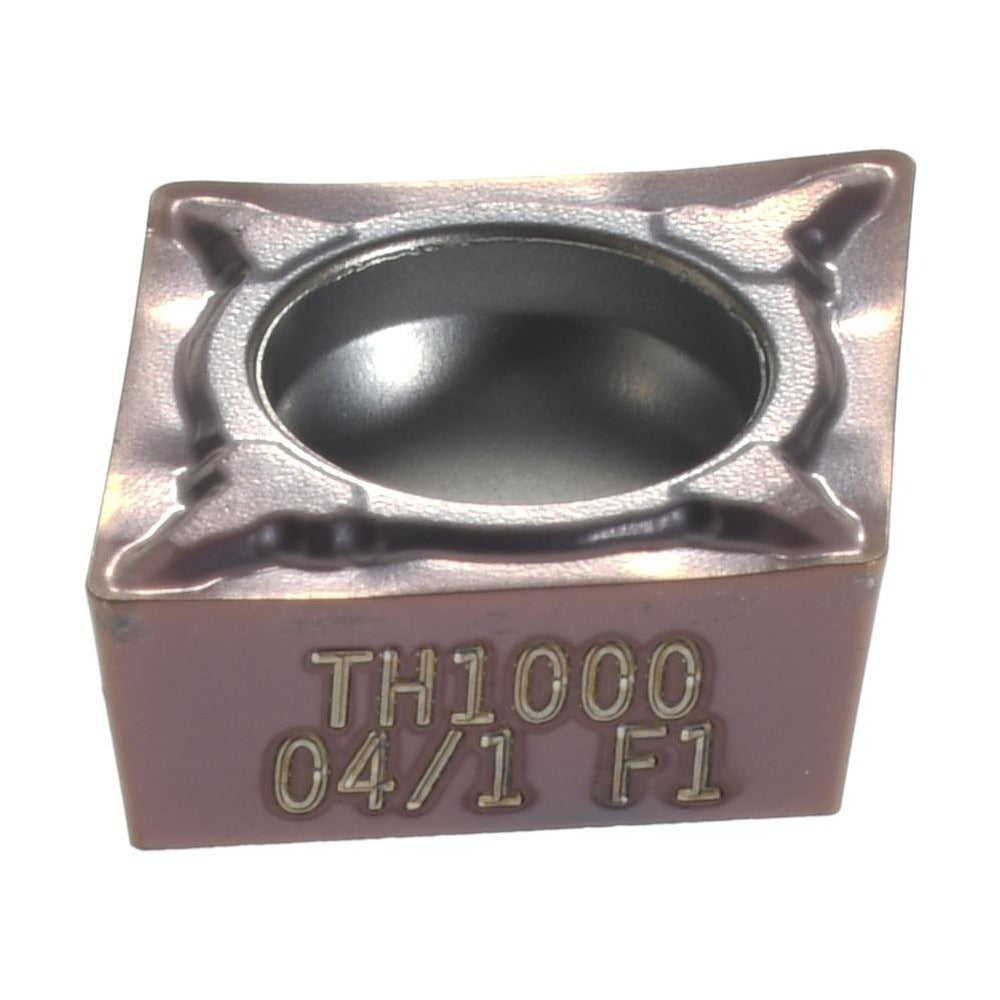

Seco 02731806 Turning Insert Ccmt 32.51-F1 TH1000 Carbide

Product Description

The SECO 02731806 is a solid carbide turning insert in the CCMT series, designed for high-performance metal cutting in demanding machining environments. Carrying the ANSI code CCMT 32.51 and ISO code CCMT09T304, this insert features an 80-degree diamond (rhombic) shape with a neutral hand orientation and a positive rake and side clearance geometry. The F1 chip breaker is optimized for finishing operations, and the multilayer TiAlSiN PVD coating under the TH1000 grade delivers high wear resistance when cutting superalloys, titanium, and hardened materials. The 3/8-inch inscribed circle and 1/64-inch corner radius suit close-tolerance finishing passes. Installation is performed by licensed machinists and CNC operators.

This insert is suited for boring, facing, and turning operations on superalloys, titanium, and hard materials, aligning with primary workpiece material codes S and H. Secondary workpiece material codes K, M, and P extend its application range to cast iron, general steels, and non-ferrous materials. The screw-holding method and CCMT-compatible toolholder platform make this insert a fit for standard CCMT insert pockets in both CNC turning centers and manual lathes. The F1 chip breaker geometry targets finishing cuts where surface finish and dimensional accuracy are the priority. Minimum order quantity is 10 units; each package contains 1 insert.

Key Features

• TH1000 grade with multilayer TiAlSiN PVD coating for high wear resistance on superalloys and hardened materials
• F1 chip breaker geometry engineered for finishing operations with sharp cutting edge style
• 80-degree diamond (rhombic) insert shape with positive rake and positive side clearance
• Neutral hand orientation compatible with standard CCMT screw-lock toolholders
• Multi-use application covering boring, facing, and turning in a single insert geometry
• Conforms to ANSI and ISO standards; ANSI code CCMT 32.51, ISO code CCMT09T304

Compatibility

Designed for use in CCMT-style insert pockets that accept the CCMT 32.51 (ISO CCMT09T304) insert size with screw-type holding. Compatible toolholders must accommodate a 3/8-inch inscribed circle, 5/32-inch insert thickness, and 7-degree relief angle. No specific toolholder model numbers were provided by the manufacturer in the available product data.

Installation Notes

Installation is performed by qualified machinists or CNC service personnel. Power down and lock out the machine before changing inserts. Seat the insert fully in the pocket and torque the clamping screw per the toolholder manufacturer specification before resuming cuts. Inspect the cutting edge and chip breaker for wear or chipping after each operation on hardened or abrasive workpiece materials.
