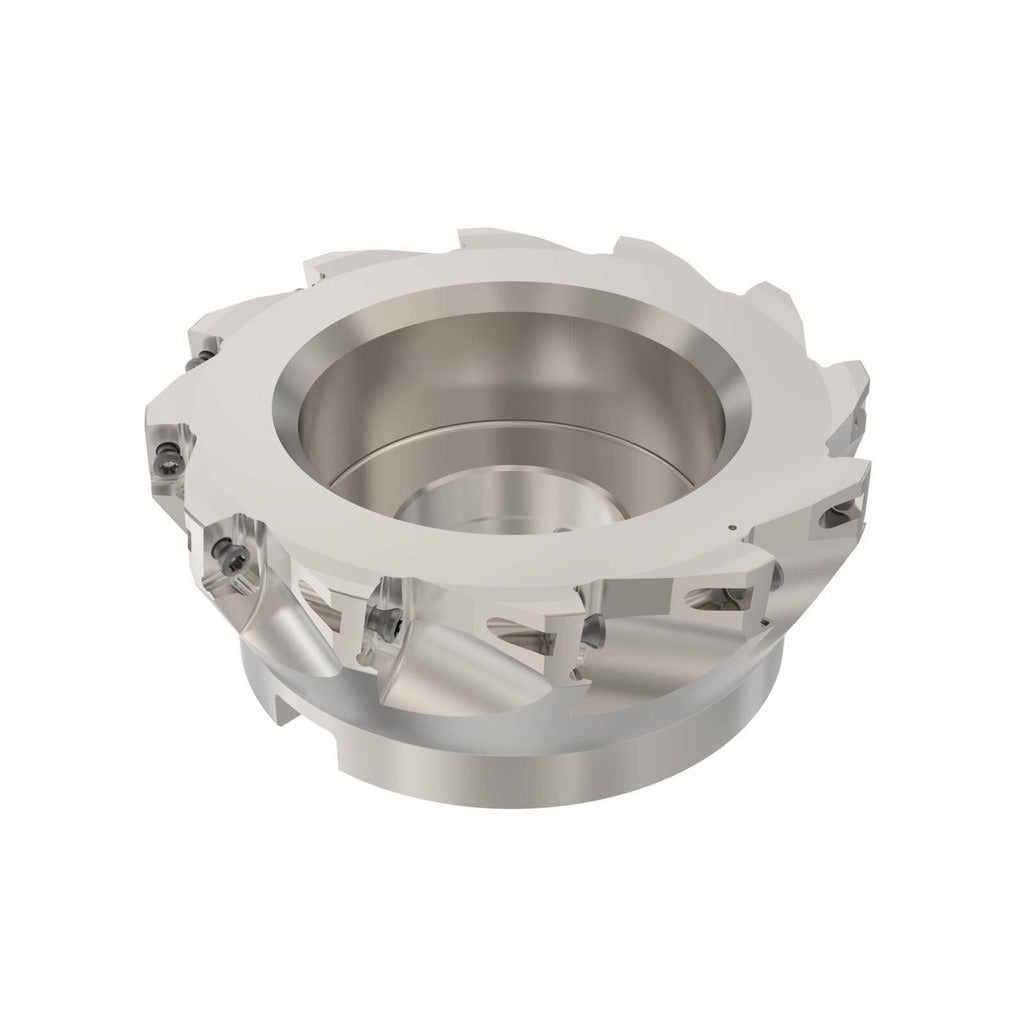

Seco 02694996 Square-shoulder Face Mill 6 in Power Turbo

Product Description

The SECO 02694996 is an indexable square-shoulder face mill designed for high-productivity milling operations on machining centers and mill-turn platforms. With a 6-inch maximum cutting diameter and a 2-inch arbor hole, this cutter accepts 12 XO X1806 inserts and delivers a 0/90 lead angle for true square-shoulder cuts. Maximum depth of cut reaches 0.669 inches, and the cutter body stands 2.48 inches tall overall. The positive axial and negative radial rake geometry promotes efficient chip formation while keeping cutting forces manageable. Machinists and CNC operators working in production environments will find this cutter suited to demanding roughing and semi-finishing passes.

The 02694996 belongs to the SECO Power Turbo series and is configured for close-pitch, right-hand cutting. Its tool application rating includes ramping at a maximum ramping angle of 0.50 degrees, making it usable in applications where plunge-entry is restricted and a ramp-in toolpath is required. The cutter is appropriate for use in aerospace, die and mold, and general metalworking applications where square shoulders and flat floors are required. Inserts are retained using a clamp and screw holding method for positive registration under high feed rates.

Key Features

• 6-inch cutting diameter with close-pitch layout accommodating 12 insert pockets
• 0/90 lead angle produces true 90-degree square shoulders in a single pass
• XO X1806 insert style with positive axial and negative radial rake for efficient chip evacuation
• Maximum depth of cut of 0.669 inches suitable for aggressive material removal
• Ramping capability at up to 0.50 degrees for programs without axial plunge clearance
• Clamp and screw insert retention for secure seating under high cutting forces

Compatibility

Designed to accept XO X1806 series inserts. Cutter style designation is R220.69. Confirm spindle interface and arbor dimensions match the 2-inch arbor hole before mounting.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician. Ensure the machine spindle is fully stopped and locked out before mounting or removing the cutter body. Verify arbor runout with a dial indicator after mounting and before initiating any cutting cycle. Follow the insert manufacturer torque recommendations for the specific clamp screws supplied with the XO X1806 inserts.
