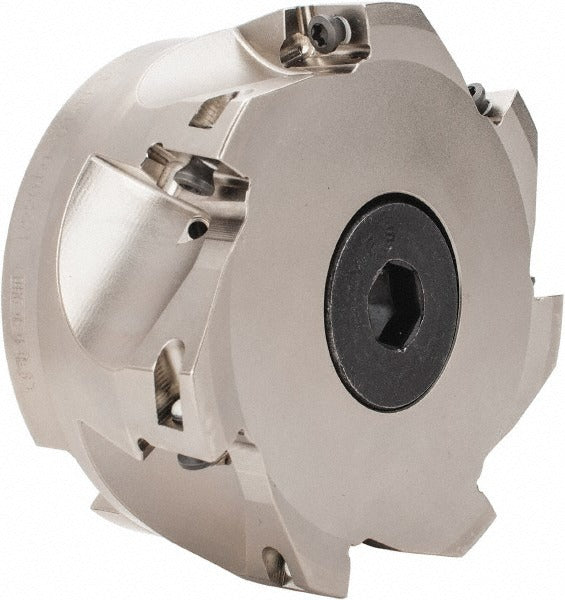

Seco 02694992 Square-shoulder Face Mill 4 Inches Power Turbo

Product Description

The SECO 02694992 is an indexable square-shoulder face mill designed for high-performance milling operations in metal cutting applications. Part of the SECO Power Turbo series, it accepts seven XO X1806 inserts and delivers a maximum cutting diameter of 4 inches with a maximum depth of cut of 0.669 inches. The cutter features a right-hand cutting direction, a 0/90 lead angle, and a positive axial and negative radial rake geometry. Through-coolant capability supports extended tool life during demanding cuts. This tool is installed and used by machinists and tooling specialists working with CNC machining centers and milling equipment.

The 02694992 is suited for square-shoulder milling operations including helical interpolation, ramping, and slotting on ferrous and non-ferrous workpieces. The medium pitch configuration with seven flutes provides a balance between chip evacuation and cutting stability. The 1-inch arbor hole diameter and 90 mm hub diameter are consistent with standard milling arbor setups found in job shops and production machining environments. An overall height of 1.969 inches keeps the assembly compact for setups with limited Z-axis clearance.

Key Features

• Maximum cutting diameter of 4 inches with a 0.669-inch maximum depth of cut
• Accepts 7 XO X1806 inserts with clamp and screw holding method
• 0/90 lead angle geometry for true square-shoulder milling
• Through-coolant design to support chip removal and insert cooling
• Supports helical interpolation, ramping up to 1.00 degree, and slotting operations
• Medium pitch, 7-flute configuration for cutting stability and chip flow

Compatibility

Designed for use with XO X1806 compatible inserts in the SECO Power Turbo series. Mount configuration uses a 1-inch arbor hole with a 16 mm keyway width. Verify insert grade and geometry selection against your specific workpiece material before use.

Installation Notes

Installation should be performed by a qualified machinist following standard arbor-mount tooling procedures. Power down and lock out the spindle before mounting or removing the cutter. Confirm that all inserts are fully seated and fasteners are properly tightened per the insert manufacturer torque specifications for the clamping style in use. Inspect through-coolant passages for obstructions before engaging coolant supply.
