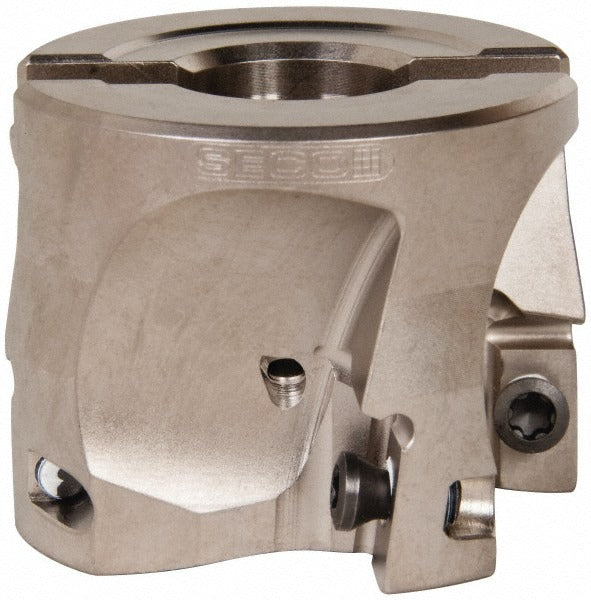

Seco 02694975 Square-shoulder Face Mill 2 in Power Turbo

Product Description

The SECO 02694975 is an indexable square-shoulder face mill designed for precision milling operations in metal cutting applications. Built around the Power Turbo series platform, this 2-inch cutting diameter cutter accepts four XO X1806-style inserts held by clamp and screw, providing a secure, repeatable cutting edge setup. The 0/90 lead angle produces true square shoulders, while the positive axial and negative radial rake geometry supports efficient chip formation. With through-coolant capability and a 0.669-inch maximum depth of cut, this cutter suits both roughing and finishing passes where thermal management is critical. Licensed machinists and CNC setup technicians are the primary installers.

The 02694975 is suited for ferrous and non-ferrous machining on vertical machining centers and horizontal mills using a standard 3/4-inch arbor interface. Its medium pitch configuration and 3-degree maximum ramping angle make it appropriate for helical interpolation, ramping, and slotting operations. The overall height of 1.575 inches and hub diameter of 47 millimeters fit common toolholder setups in production and job-shop environments. Four flutes provide a balance of chip clearance and surface finish at moderate to high feed rates.

Key Features

• 2-inch maximum cutting diameter with 0/90 lead angle for true square-shoulder profiles
• Accepts 4 XO X1806-style inserts secured by clamp and screw method
• Through-coolant design for effective heat and chip management at the cutting zone
• Positive axial and negative radial rake geometry for efficient chip formation
• Supports helical interpolation, ramping, and slotting tool paths with up to 3-degree ramping angle
• Medium pitch, 4-flute layout balances chip clearance with surface finish capability

Compatibility

Designed for use with XO X1806-style inserts in the Power Turbo series platform using a 3/4-inch arbor hole interface. Compatible insert style code is XO X1806; cutter style designation is R220.69.

Installation Notes

Installation is performed by qualified machinists or CNC tooling technicians. Before mounting or changing inserts, ensure the machine spindle is fully stopped, locked out, and de-energized per shop lockout/tagout procedures. Use appropriate torx or hex drivers for insert clamp screws and verify insert seating before running. Confirm arbor fit and drawbar torque per the machine tool manufacturer's specifications prior to operation.
