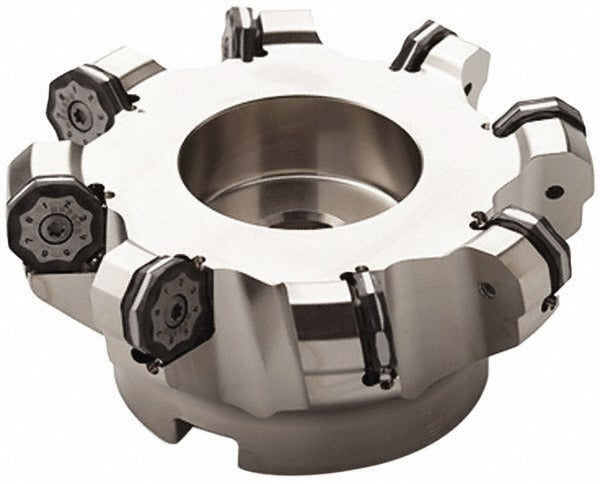

Seco 02685795 Indexable Face Mill 3.94 in 7 Insert R220.48

Product Description

The SECO 02685795 is an indexable chamfer angle face mill designed for high-efficiency facing operations on machining centers and milling machines. Built around the R220.48 cutter series, this tool accepts 7 ON.U09 inserts held in place by a wedge clamping method for rigid, repeatable performance. The face mill has a minimum cutting diameter of 3.94 inches and a maximum cutting diameter of 4.53 inches, with a maximum depth of cut of 0.236 inches. A 1.5 inch arbor hole provides a secure, centered fit to the spindle arbor. The right-hand cutting direction and negative rake angle of -8 degrees suit this tool to a broad range of workpiece materials under standard facing conditions. Total assembled weight is 3.97 pounds.

This face mill is suited for flat surface facing on ferrous and non-ferrous workpieces in production and job shop environments. With 7 flutes and a normal pitch configuration, it delivers a balanced cut at spindle speeds up to 3,500 RPM. A licensed machinist or CNC setup technician typically installs and operates this tooling. The 0.63 inch keyway width and 3.543 inch hub diameter are sized for precision arbor registration. This tool does not feature coolant-through capability, so external flood or mist coolant should be directed at the cutting zone to manage chip evacuation and heat during facing passes.

Key Features

• R220.48 series cutter body accepts 7 ON.U09 indexable inserts
• Cutting diameter range from 3.94 inches to 4.53 inches for versatile facing applications
• Maximum depth of cut of 0.236 inches per pass
• Wedge insert holding method for secure, repeatable insert seating
• Negative rake angle (-8 degrees) with right-hand cutting direction
• Maximum spindle speed of 3,500 RPM for controlled facing passes
• Normal pitch, 7-flute design for balanced chip load distribution

Compatibility

Compatible with ON.U09 indexable inserts. Designed for use on milling machines and machining centers with a 1.5 inch arbor, 0.63 inch keyway, and sufficient spindle power to drive a 7-insert face mill at facing depths up to 0.236 inches.

Installation Notes

Installation is performed by a qualified machinist or CNC tooling technician. The spindle must be fully stopped and locked out before mounting or removing the face mill from the arbor. Confirm the arbor keyway and insert pockets are clean and free of chips before seating the cutter body. Inserts should be indexed or replaced following the tool manufacturer's wear criteria to maintain dimensional accuracy and prevent spindle damage.
