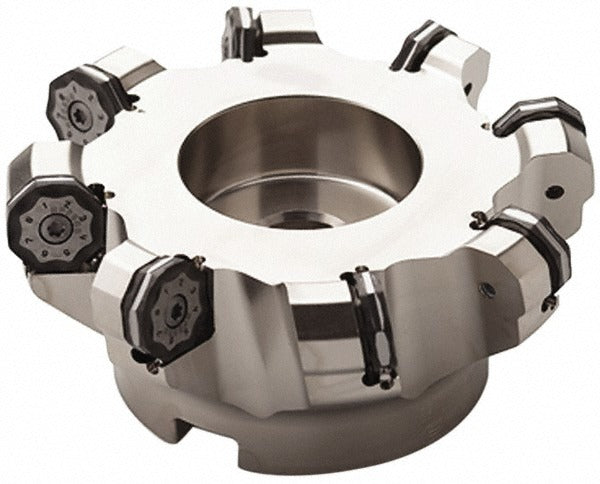

Seco 02685794 Indexable Face Mill 3.15 in 6 Flutes R220.48

Product Description

The SECO 02685794 is an indexable chamfer angle face mill designed for precision milling operations in metalworking environments. Built to Series R220.48 specifications, it accepts ON.U.09 inserts secured by a wedge holding method and features a right-hand cutting direction. The cutter spans a minimum cutting diameter of 3.15 inches and a maximum body diameter of 3.74 inches, with a maximum depth of cut of 0.236 inches. Six flutes and a normal pitch configuration make this tool well-suited for consistent stock removal on flat surfaces. It is installed by machinists and tool and die professionals working with CNC and manual milling machines.

This face mill is intended for use in production and job shop environments where chamfer angle face milling is required. The 1-inch arbor hole diameter and 0.38-inch keyway width provide positive drive engagement and accurate tool positioning on compatible arbors and spindles. With a maximum rated speed of 4,400 RPM and no coolant-through capability, it is suited for dry or externally cooled milling setups. The 1.969-inch overall height fits standard tooling envelopes for horizontal and vertical milling applications.

Key Features

• Accepts 6 ON.U.09 indexable inserts with wedge holding method for secure, repeatable seating
• Right-hand cutting direction for standard spindle rotation compatibility
• 3.15 inch minimum to 3.74 inch maximum cutting diameter range with 0.236 inch max depth of cut
• Normal pitch, 6-flute configuration for balanced chip load and surface finish
• 1-inch arbor hole with 0.38-inch keyway for positive drive and accurate mounting
• Rated to 4,400 RPM maximum for controlled high-speed milling operations

Compatibility

Designed for use with ON.U.09 series indexable inserts on milling machines equipped with a 1-inch arbor. Part of the SECO R220.48 cutter series.

Installation Notes

Installation should be performed by a qualified machinist following the machine tool manufacturer's tooling procedures. Ensure the spindle is fully powered down and locked out before mounting or changing the cutter. Verify arbor diameter, keyway alignment, and drawbar torque specifications per the machine manufacturer's documentation before operating. Follow applicable shop safety standards and insert manufacturer guidelines when indexing or replacing inserts.
