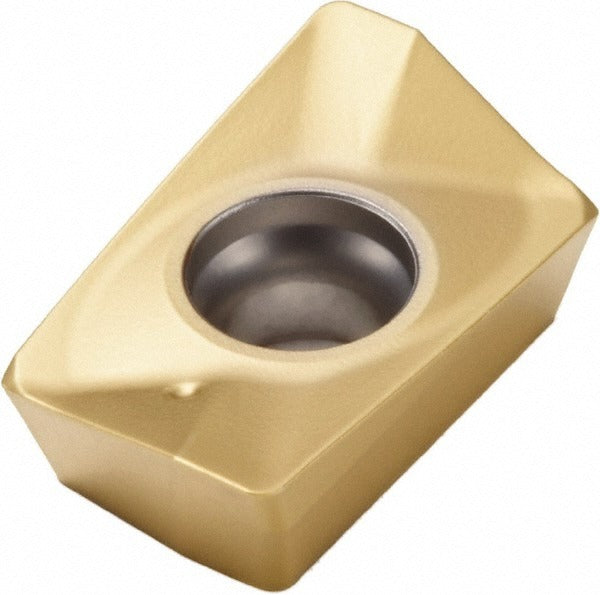

Seco 02656569 Milling Insert XOMX180616TR-M14 MP3000

Product Description

The SECO 02656569 is a solid carbide milling insert carrying the ANSI and ISO designation XOMX180616TR-M14, manufactured to the MP3000 micrograin grade. This single-sided, right-hand insert features a parallelogram shape with a 90-degree included angle and a positive rake geometry with a T-Land cutting edge style. A PVD-applied TiAlN coating provides thermal and wear resistance suited for demanding milling operations. Two cutting edges are available per insert. The M14 chip breaker geometry supports controlled chip evacuation. This insert is held in place by a screw-type clamping method and is designed for use in indexable milling cutter bodies.

This insert is suited for milling steel, stainless steel, and hard materials, covering ISO material application codes P, M, and H. The positive 15-degree rake angle and 15-degree relief angle reduce cutting forces, making this insert effective for finishing and semi-finishing passes in both light and moderate stock removal scenarios. A maximum depth of cut of 0.6693 inches and a cutting edge effective length of 0.6693 inches support productive material removal rates in a range of milling applications encountered in production and job-shop environments.

Key Features

• MP3000 micrograin solid carbide substrate with PVD TiAlN coating for extended tool life in hard and abrasive materials
• Positive rake (15 degrees) and 15-degree relief angle reduce cutting forces and heat generation
• M14 chip breaker geometry promotes consistent chip control across steel and stainless steel workpieces
• Two usable cutting edges per insert maximize cost per edge
• T-Land cutting edge style provides edge reinforcement for interrupted cuts and harder workpiece materials
• Right-hand, single-sided parallelogram insert with screw-type holding for secure, repeatable indexing

Compatibility

Compatible with SECO cutter series R217.69-18 and R220.69-18 milling cutter bodies as stated by the manufacturer.

Installation Notes

Installation is performed by qualified machinists or tooling technicians using the appropriate torque screwdriver specified for the cutter body. Ensure the cutter body pocket and seating surfaces are clean and free of chips before indexing or replacing the insert. Follow the cutter body manufacturer's clamping torque guidelines to avoid insert cracking or improper seating. Confirm spindle direction and insert hand orientation before running the cutter at operating speed.
