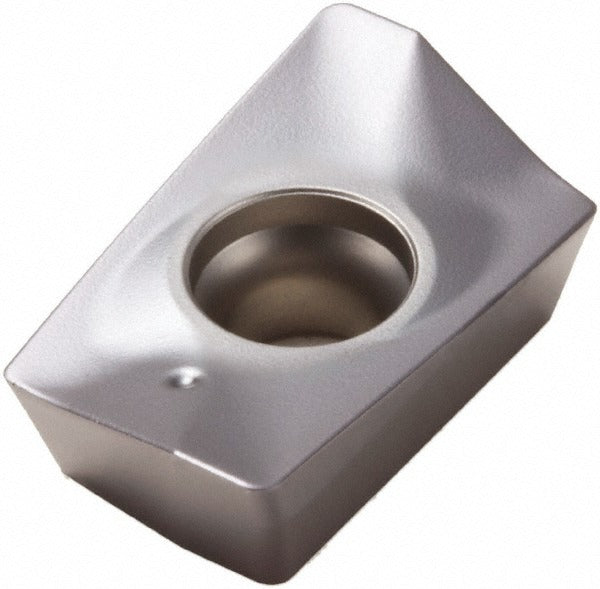

Seco 02656566 Milling Insert XOMX180631TR-D16 MP3000

Product Description

The SECO 02656566 is a solid carbide milling insert in the XOMX-18 series, designed for use in indexable milling cutters operating on steel, stainless steel, and hard materials. It carries the MP3000 manufacturer grade with a TiAlN PVD coating applied over a micrograin carbide substrate. The insert features a parallelogram shape with a 90-degree included angle, a positive rake geometry at 9 degrees, and a T-Land cutting edge style. With a corner radius of 0.1220 inches and a maximum depth of cut of 0.6693 inches, it is suited for demanding milling applications where edge stability and wear resistance are required.

This insert is intended for use in professional machining environments by machinists and tooling technicians working with CNC or manual milling equipment. It is a right-hand, single-sided insert held by screw clamping. Primary workpiece material is hard material (ISO code H), with secondary compatibility covering steel and stainless steel (ISO codes P and M). It is compatible with SECO cutter series R217.69-18 and R220.69-18. Sold individually with a minimum order quantity of 10 pieces.

Key Features

• Solid carbide micrograin substrate with TiAlN PVD coating for wear resistance in hard and ferrous materials
• MP3000 grade optimized for steel, stainless steel, and hard material applications
• Positive rake angle of 9 degrees with T-Land cutting edge style for controlled chip formation
• Corner radius of 0.1220 inches and maximum depth of cut of 0.6693 inches
• Two cutting edges per insert, right-hand orientation, screw-clamped mounting
• Compatible with SECO cutter series R217.69-18 and R220.69-18

Compatibility

Designed for use with SECO milling cutter series R217.69-18 and R220.69-18. ANSI and ISO code XOMX180631TR-D16. Confirm cutter body compatibility before ordering.

Installation Notes

Installation is performed by a qualified machinist or tooling technician. Power down and lock out the machine spindle before seating or removing inserts. Use the appropriate torx or hex key to the cutter body manufacturer's specified torque when securing the clamping screw — refer to the cutter body documentation for fastener requirements. Inspect the pocket seat and clamping screw for wear or contamination before installing a new insert.
