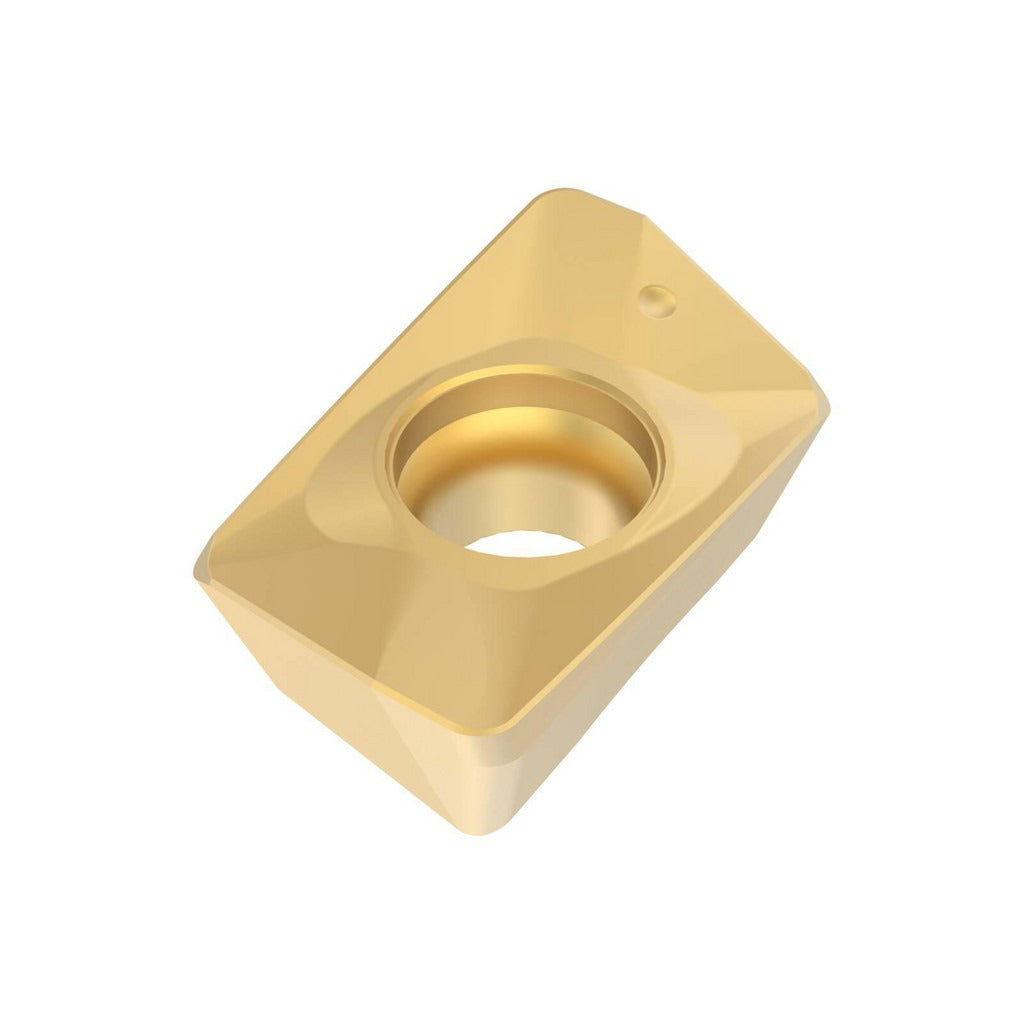

Seco 02656505 Milling Insert XOMX120416TR-MD13 MP3000

Product Description

The SECO 02656505 is a solid carbide milling insert carrying the ANSI and ISO designation XOMX120416TR-MD13 in manufacturer grade MP3000. This single-sided, right-hand parallelogram insert features a TiAlN PVD coating applied over a micrograin carbide substrate. It provides two cutting edges with a positive rake angle of 14.7 degrees and a T-Land cutting edge style. The MD13 chip breaker geometry is designed for controlled chip formation in demanding applications. The insert is held in the cutter body by screw clamping and is intended for use by machinists and tooling professionals in milling operations on hard materials and ferrous workpiece materials.

This insert is suited for milling applications on steel, stainless steel, and hard materials, corresponding to ISO material groups P, M, and H. The positive rake geometry and PVD TiAlN coating support productive cutting in both roughing and finishing passes where thermal and abrasive wear resistance are required. It is used in vertical and horizontal milling setups on CNC machining centers. Compatible cutter series include R217.69-12 and R220.69-12 per supplier specification.

Key Features

• Solid carbide micrograin substrate with TiAlN PVD coating for wear resistance in hard and ferrous materials
• Positive rake angle of 14.7 degrees with T-Land cutting edge style for controlled engagement
• MD13 chip breaker for effective chip management in steel and stainless steel milling
• Two cutting edges per insert with right-hand cutting orientation
• Screw-mounted insert holding method for secure, repeatable seating in compatible cutter bodies
• Conforms to ISO standards with ANSI and ISO code XOMX120416TR-MD13

Compatibility

Designed for use with SECO cutter series R217.69-12 and R220.69-12. Intended for milling applications on steel, stainless steel, and hard materials as identified by ISO material codes P, M, and H.

Installation Notes

Insert installation and replacement should be performed by a qualified machinist or tooling technician with the machine spindle fully stopped and locked out per applicable machine safety procedures. Use the correct torque wrench and insert screw specified by the cutter body manufacturer to seat the insert properly. Inspect the insert pocket and clamping screw for wear or debris before installation. Do not mix insert grades or geometries within a multi-pocket cutter body unless confirmed compatible by the tooling manufacturer.
