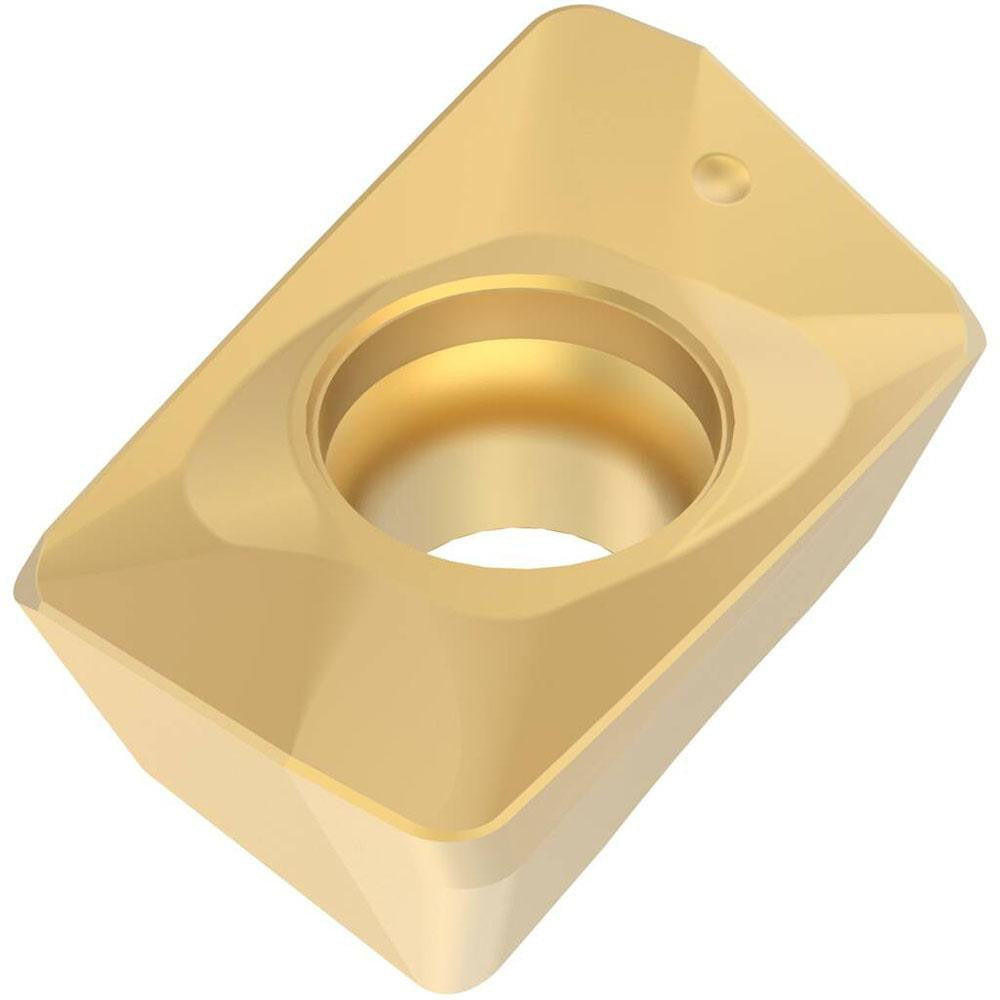

Seco 02656234 Milling Insert XOMX120416TR-M12 MP3000

Product Description

The SECO 02656234 is a solid carbide milling insert carrying ANSI and ISO designation XOMX120416TR-M12 in manufacturer grade MP3000. This single-sided, right-hand insert features a parallelogram shape with a 90-degree included angle and a positive rake geometry at 10.4 degrees. A T-Land cutting edge style and PVD-applied TiAlN coating make it well suited for demanding milling operations on hard materials, steel, and stainless steel. The insert provides two cutting edges and a corner radius of 0.063 inches. It is screw-held and sized within the XOMX-12 series.

This insert is intended for use in face and shoulder milling applications where consistent chip control is required across hard materials, steel, and stainless steel workpieces. The M12 chip breaker geometry promotes reliable chip evacuation at moderate to aggressive cutting parameters. It is a standard choice for production machining environments where micrograin carbide substrate and PVD TiAlN coating are specified for extended tool life in interrupted or continuous cuts.

Key Features

• PVD TiAlN coating over micrograin solid carbide substrate for wear resistance in hard and ferrous materials
• Positive rake angle of 10.4 degrees with T-Land cutting edge for reduced cutting forces
• Two cutting edges per insert maximize value per piece
• Corner radius of 0.063 inches reduces stress concentration at the tool nose
• M12 chip breaker optimized for steel, stainless steel, and hard material applications
• Screw-held mounting for secure, repeatable insert positioning in compatible cutter bodies

Compatibility

Compatible with SECO cutter series R217.69-12 and R220.69-12 as specified by the manufacturer.

Installation Notes

Installation is performed by a machinist or tooling technician. Ensure the cutter body pocket and seating surfaces are clean and free of chips before seating the insert. Use the manufacturer-specified torque wrench and insert screw for the cutter body to avoid over-torquing the clamping screw. Always disengage the spindle and follow lockout procedures before changing inserts on any milling machine.
