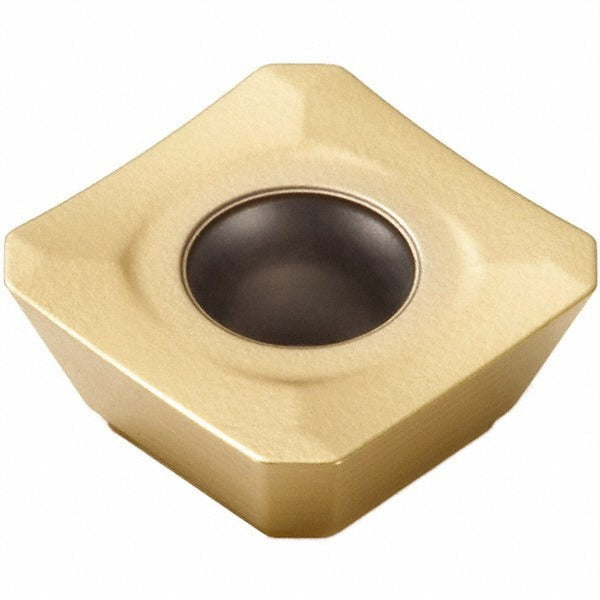

Seco 02656058 Milling Insert SEEX09T3AFN-M05 MP3000 Carbide

Product Description

The SECO 02656058 is a solid carbide milling insert carrying ANSI and ISO designation SEEX09T3AFN-M05 in the MP3000 manufacturer grade. This single-sided, square-shape insert features a TiAlN coating applied via PVD process and is designed for indexable milling operations on hard materials, steel, and stainless steel. It provides 4 cutting edges per insert, a neutral rake angle of 0 degrees, and a honed cutting edge style. At 0.1563 inches thick with a 3/8 inch inscribed circle and a maximum depth of cut of 0.2795 inches, it is suited to medium-to-finish milling passes where edge consistency and coating durability matter. Installation and indexing are performed by a licensed machinist or toolroom technician.

This insert is intended for use in indexable milling cutters on CNC and manual milling machines. It is rated for primary application in hard material (ISO code H) and secondary application in steel and stainless steel (ISO codes P and M). The M05 chip breaker geometry is optimized for controlled chip formation in these material groups. The insert is compatible with SECO cutter series R217.53-09 and R220.53-09 as specified by the manufacturer. Typical use cases include face milling, shoulder milling, and profiling operations in job shop and production environments.

Key Features

• Solid carbide micrograin substrate with TiAlN PVD coating for wear resistance in hard and ferrous materials
• 4 indexable cutting edges per single-sided insert for extended tool life per unit
• Square SEEX insert shape with 90-degree included angle and neutral rake for versatile milling geometry
• M05 chip breaker geometry designed for steel, stainless steel, and hard material applications
• Honed cutting edge style for improved edge strength and surface finish consistency
• Maximum depth of cut of 0.2795 inches with a cutting edge effective length of 0.3748 inches

Compatibility

Compatible with SECO milling cutter series R217.53-09 and R220.53-09. Insert size code 09T3; ANSI and ISO designation SEEX09T3AFN-M05.

Installation Notes

Installation is performed by a qualified machinist or toolroom technician. Power down and lock out the machine spindle before indexing or replacing inserts. Use the appropriate torx or hex key as specified by the cutter body manufacturer when seating the insert screw; do not overtighten. Inspect the insert pocket and clamping screw for wear or debris before installing a new insert.
