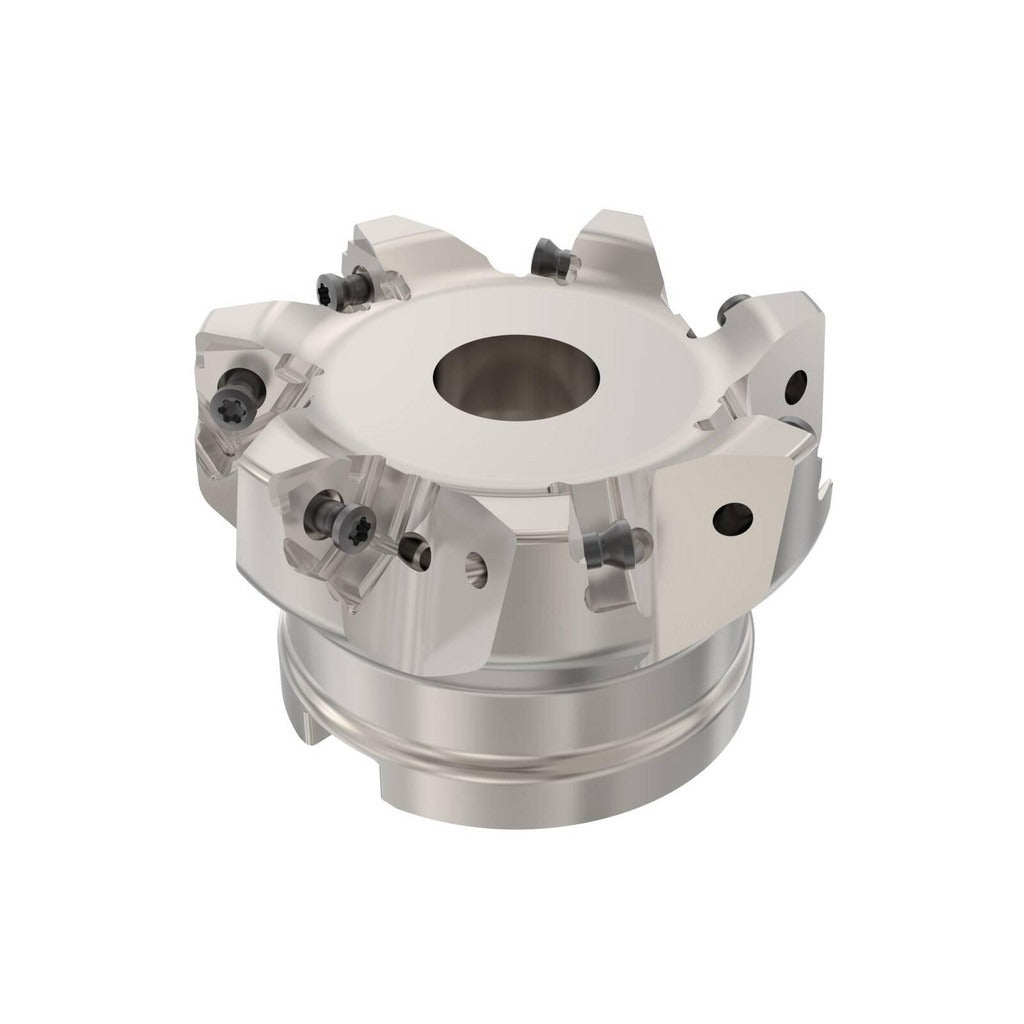

Seco 02642881 Indexable Square-shoulder Face Mill 3 in

Product Description

The SECO 02642881 is an indexable square-shoulder face mill designed for precision slotting and shoulder milling operations in metal cutting applications. Built around the R220.96 cutter style, it accepts 7 XNEX 0806 inserts and delivers a maximum cutting diameter of 3 inches with a maximum depth of cut of 0.295 inches. The 1-inch arbor hole provides a secure machine spindle interface. At 1.97 inches in overall height and featuring through-coolant capability, this cutter is suited for high-production environments where heat management and chip evacuation are critical. Installation and operation are typically handled by CNC machinists and tooling specialists.

This face mill is configured for right-hand cutting direction with a 0/90 lead angle and negative rake geometry, which is characteristic of the Square 6 series designed for medium-pitch slotting work. Through-coolant support makes it compatible with CNC machining centers equipped with internal coolant delivery. The XNEX 0806 insert style allows for straightforward indexing without full insert replacement, reducing tooling downtime during production runs. Typical applications include full-width slotting and square-shoulder profiling on ferrous and non-ferrous workpiece materials.

Key Features

• 3-inch maximum cutting diameter with 0.295-inch maximum depth of cut for controlled slotting passes
• Accepts 7 XNEX 0806 inserts with clamp and screw holding method for secure, repeatable indexing
• 0/90 lead angle and negative rake geometry optimized for square-shoulder milling
• Through-coolant design supports internal coolant delivery at the cutting zone
• R220.96 cutter body style, Square 6 series, medium pitch configuration
• Right-hand cutting direction with 1-inch arbor hole for standard spindle mounting

Compatibility

Designed for use with XNEX 0806 series inserts on CNC machining centers equipped with a 1-inch arbor interface and through-coolant capability. Part of the SECO Square 6 series, R220.96 cutter style.

Installation Notes

This cutter is installed and serviced by qualified CNC machinists or tooling technicians. Power down and lock out the spindle drive before mounting or indexing inserts. Verify arbor and spindle interface fitment and torque all clamp screws to the toolholder manufacturer specification using calibrated tooling. Confirm coolant port alignment with the machine spindle coolant supply before operation.
