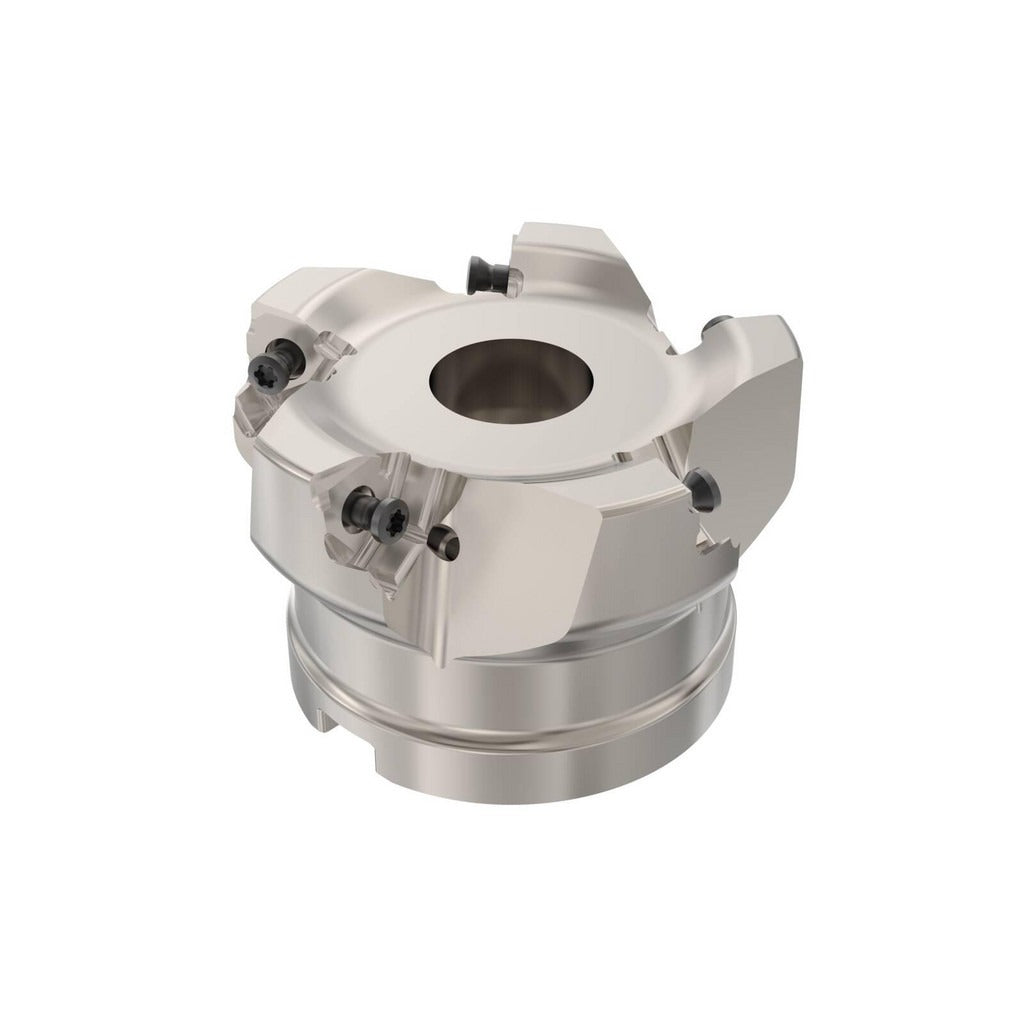

Seco 02642879 Square-shoulder Face Mill 3 Inch 5 Insert

Product Description

The SECO 02642879 is an indexable square-shoulder face mill designed for precision slotting and shoulder milling operations in metalworking environments. Built around the Square 6 series platform and styled as the R220.96 cutter, it accepts five XNEX 0806 inserts held by clamp and screw, producing a clean 90-degree lead angle on every pass. The cutter spans a 3-inch maximum cutting diameter with a 1-inch arbor hole and delivers a maximum depth of cut of 0.295 inches. Through-coolant capability helps manage chip evacuation and heat at the cutting zone. This tool is installed by machinists and tooling technicians working on CNC mills and manual milling machines in production and job-shop settings.

The 02642879 is suited for square-shoulder facing, slotting, and step milling on steel, cast iron, and similar materials where a 90-degree wall is required. Its coarse pitch, five-flute layout supports stable cutting in interrupted cuts and moderate material removal applications. The right-hand cutting direction and negative rake geometry are matched to the XNEX 0806 insert family. Overall tool height of 1.97 inches and a hub diameter of 62 mm (approximately 2.44 inches) fit standard arbor setups used across general metalworking operations.

Key Features

• 3-inch maximum cutting diameter with 0/90 lead angle for true square shoulders
• Accepts 5 XNEX 0806 inserts secured by clamp and screw method
• Through-coolant design improves chip flushing and tool life at depth
• R220.96 cutter style in the Square 6 series for consistent insert seating
• Coarse pitch, negative rake geometry for stable interrupted-cut performance
• Right-hand cut direction compatible with standard spindle rotation on CNC and manual mills

Compatibility

Designed to accept XNEX 0806 series inserts. No additional specific machine model or system compatibility data was provided in the product input.

Installation Notes

Installation is performed by qualified machinists or tooling technicians. Ensure the machine spindle is fully stopped and locked out before mounting or changing the cutter or inserts. Verify arbor and keyway dimensions match machine specifications before tightening. Inspect insert seating and clamping screw torque according to the tool manufacturer guidelines prior to any cutting operation.
