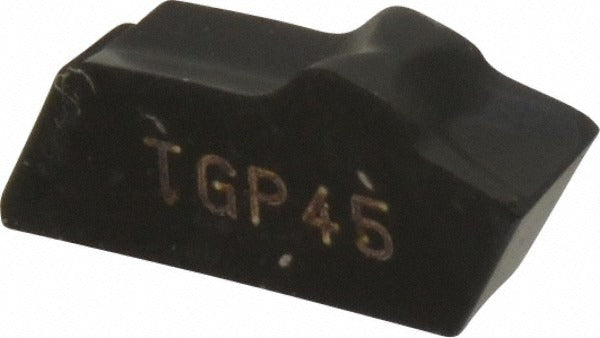

Seco 02636648 Carbide Cutoff Insert TGP45 Series 150.10

Product Description

The SECO 02636648 is a solid carbide cutoff insert engineered for parting and grooving operations on CNC lathes and turning centers. It carries a TGP45 manufacturer grade and features a CVD-applied Duratomic coating of TiCN and Al2O3, which builds heat and wear resistance for extended tool life in continuous or interrupted cuts. The insert delivers a 0.122-inch cutting width with a 0.008-inch corner radius and a 6-degree right-hand lead angle. Chipbreaker style 16 promotes chip control in a single-end configuration. Machinists and CNC operators working in production turning environments use this insert for precise, repeatable cutoff work.

This insert is suited for universal workpiece materials coded OD, covering a broad range of metal turning applications in both job shop and production settings. It fits Series 150.10 toolholders that accept a size 3 insert seat and use a clamp-style holding method. The right-hand lead angle and right-hand insert hand make it appropriate for standard OD cutoff and parting setups on conventional and CNC turning equipment. It is a single-end insert sold individually, with a minimum order quantity of 10 pieces.

Key Features

• TGP45 grade solid carbide construction for high hardness and wear resistance
• CVD Duratomic coating: TiCN plus Al2O3 layers for thermal and abrasion protection
• 0.122-inch cutting width with tight width tolerance of plus or minus 0.003 inches
• 0.008-inch corner radius for controlled edge geometry on cutoff applications
• 6-degree right-hand lead angle with chipbreaker style 16 for reliable chip evacuation
• Maximum depth of cut of 3.00 mm supports typical parting and grooving depths

Compatibility

Designed for Series 150.10 toolholders requiring a size 3 insert seat with clamp-style holding. Overall insert length is 0.354 inches. Consult the Series 150.10 toolholder documentation to confirm seat geometry and clamp compatibility before ordering.

Installation Notes

Installation is performed by qualified machinists or CNC tooling technicians. Disengage spindle power and confirm the machine is in a safe, locked-out state before changing inserts. Use the appropriate torque wrench and clamp hardware specified by the toolholder manufacturer — do not substitute clamp screws or seats. Inspect the insert seat and clamp for wear or debris before seating the new insert to ensure proper clamping force and insert stability during cutting.
